7.17.3.2 nRESET (External 32-kHz Crystal)

Figure 7-7 shows the reset timing diagram for the external 32-kHz crystal first-time power-up and reset removal.

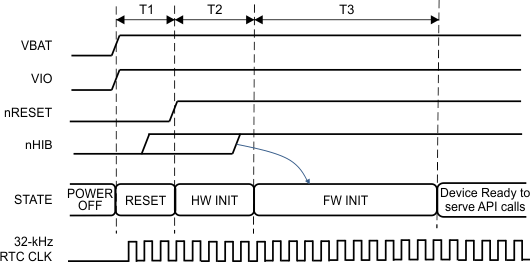

CC3135 First-Time Power-Up and Reset Removal Timing Diagram (External 32-kHz Crystal) Figure 7-7 First-Time Power-Up and Reset Removal Timing Diagram (External 32-kHz Crystal)



Table 7-12 describes the timing requirements for the external first-time power-up and reset removal.
