7.17.4 Wakeup From HIBERNATE Mode

Note:

The 32.768-kHz crystal is kept enabled by default when the chip goes into HIBERNATE mode in response to nHIB being pulled low.

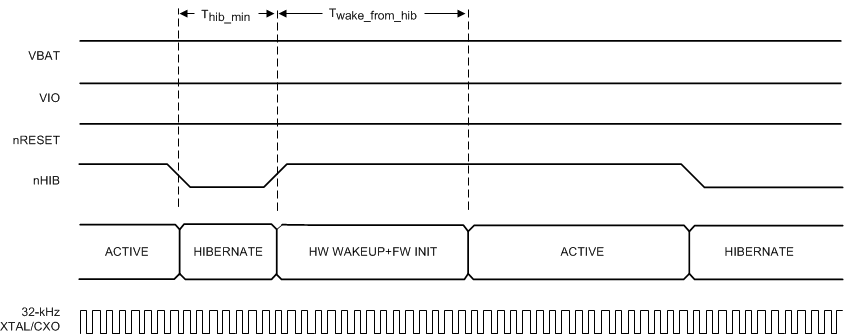

Figure 7-8 shows the timing diagram for wakeup from HIBERNATE mode.

CC3135 nHIB Timing DiagramFigure 7-8 nHIB Timing Diagram



Table 7-13 describes the timing requirements for nHIB.
