9.3.2.2 Transmission Line Considerations

The RF signal from the module is routed to the antenna using a Coplanar Waveguide with ground (CPW-G) structure. CPW-G structure offers the maximum amount of isolation and the best possible shielding to the RF lines. In addition to the ground on the L1 layer, placing GND vias along the line also provides additional shielding.

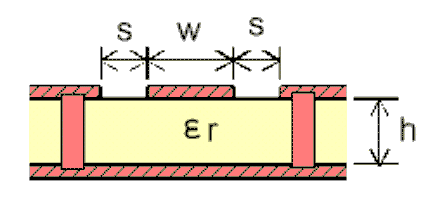

Figure 9-7 shows a cross section of the coplanar waveguide with the critical dimensions.

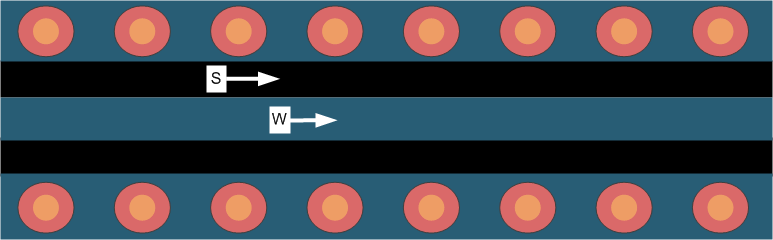

Figure 4-1 shows the top view of the coplanar waveguide with GND and via stitching.

CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF Coplanar Waveguide (Cross Section)Figure 9-7 Coplanar Waveguide (Cross Section)



CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF CPW With GND and Via Stitching (Top View)Figure 9-8 CPW With GND and Via Stitching (Top View)

The recommended values for the PCB are provided for 2-layer boards in Table 9-5 and 4-layer boards in Table 9-6.

Table 9-5 Recommended PCB Values for 2-Layer Board (L1 to L2 = 42.1 mils)
PARAMETERVALUEUNIT
W26mils
S5.5mils
H42.1mils
Er (FR-4 substrate)4.2F/m



Table 9-6 Recommended PCB Values for 4-Layer Board (L1 to L2 = 16 mils)
PARAMETERVALUEUNITS
W21mils
S10mils
H16mils
Er (FR-4 substrate)4.5F/m
