4 Functional Block Diagrams

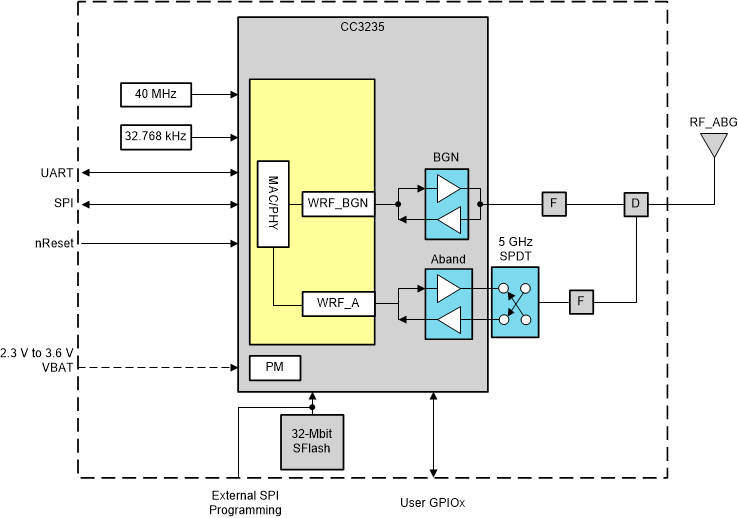

Figure 4-1 shows the functional block diagram of the CC3235MODx module.

GUID-99D2DED3-26E3-4433-9291-917C405FA42C-low.gifFigure 4-1 CC3235MODx Functional Block Diagram

Figure 4-2 shows the functional block diagram of the CC3235MODAx module.

GUID-10132E02-4F7D-4AA4-8BCF-1CE458E8CA1F-low.gifFigure 4-2 CC3235MODAx Functional Block Diagram

Figure 4-3 shows the an overview of the CC3235x hardware.

GUID-FCDEB5E6-A2B2-4DCD-A443-A7B063FFE11B-low.gifFigure 4-3 CC3235x Hardware Overview

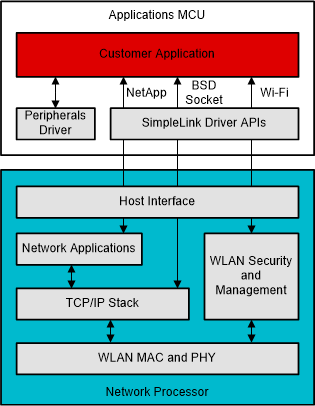

Figure 4-4 shows the an overview of the CC3235x embedded software.

GUID-9337783F-4656-4D56-B0EE-6E94B54D6646-low.gifFigure 4-4 CC3235x Embedded Software Overview
