9.1.3 Typical Application Schematic (CC3235MODx)

Figure 9-3 shows the typical application schematic using the CC3235MODx module. See the full reference schematic for CC3235MODx.

Note that the CC3235MODx and CC3235MODAx modules share the same reference schematic. The difference between the two references is the antenna and its matching circuitry. The CC3235MODAx's pin 31 is not accessible to the designer because it is directly tied to the integrated antenna.

Note:

The following guidelines are recommended for implementation of the RF design:

  • Ensure an RF path is designed with an impedance of 50Ω.
  • Tuning of the antenna impedance π matching network is recommended after manufacturing of the PCB to account for PCB parasitics.
  • π or L matching and tuning may be required between cascaded passive components on the RF path.

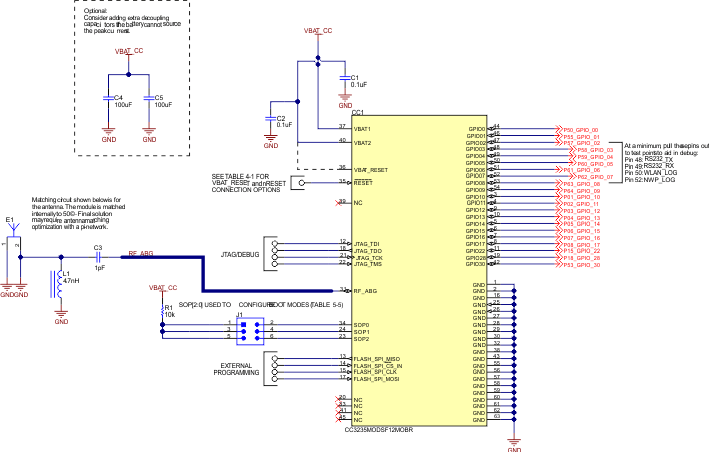

CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF CC3235MODx Typical Application SchematicFigure 9-3 CC3235MODx Typical Application Schematic

Table 9-1 provides the bill of materials for a typical application using the CC3235MODx module in Figure 9-3.

For full operation reference design, see the CC3235MODAx SimpleLink™ and Internet of Things Hardware Design Files.

Table 9-1 Bill of Materials
QTYPART REFERENCEVALUEMANUFACTURERPART NUMBERDESCRIPTION
2C1, C20.1µFMurataGRM155R61A104KA01DCapacitor, ceramic, 0.1µF, 10V, ±10%, X5R, 0402
1C31pFMurataGRM1555C1H1R0CA01DCapacitor, ceramic, 1pF, 50V, ±5%, C0G/NP0, 0402
2C4, C5100µFMurataLMK325ABJ107MMHTCapacitor, ceramic, 100µF, 10V, ±20%, X5R, AEC-Q200 Grade 3, 1210
1E12.4GHz, 5GHz AntEthertronicsM830520Antenna Bluetooth WLAN Zigbee®
1L14.7nHMurataLQG15HS4N7C02DInductor, Multilayer, Air Core, 4.7nH, 0.7 A, 0.16Ω, SMD
1R110kVishay-DaleCRCW040210K0JNEDRES, 10k, 5%, 0.063 W, AEC-Q200 Grade 0, 0402
1CC1CC3235MODxTexas InstrumentsCC3235MODSM2MOB/CC3235MODSF12MOBSimpleLink™ Wi-Fi® and Internet-of-Things Module Solution, a Single-Chip Wireless Dual-Band MCU, MOB0063A
