SCHS032D November   1998  – July 2021 CD4027B

PRODUCTION DATA

  1. 1 Features
  2. 2 Applications
  3. 3 Description
  4. 4 Revision History
  5. 5 Pin Configuration and Functions
  6. 6 Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 Recommended Operating Conditions
    3. 6.3 Static Electrical Characteristics
    4. 6.4 Dynamic Electrical Characteristics
    5. 6.5 Typical Characteristics
  7. 7 Parameter Measurement Information
  8. 8 Detailed Description
    1. 8.1 Functional Block Diagram
    2. 8.2 Device Functional Modes (1)
  9. 9 Device and Documentation Support
    1. 9.1 Receiving Notification of Documentation Updates
    2. 9.2 Support Resources
    3. 9.3 Trademarks
    4. 9.4 Electrostatic Discharge Caution
    5. 9.5 Glossary
  10. 10Mechanical, Packaging, and Orderable Information

Package Options

Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • PW|16
  • NS|16
  • N|16
  • D|16
Thermal pad, mechanical data (Package|Pins)
Orderable Information

5 Pin Configuration and Functions

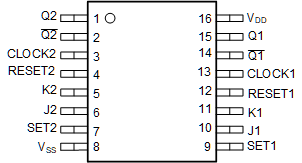

GUID-20210330-CA0I-9LV8-KG5X-BJDVDJDSKCSB-low.gifFigure 5-1 Terminal Assignment
Table 5-1 Pin Functions
PINI/ODESCRIPTION
NAMENO.
CLOCK113IClock input for channel 1
CLOCK23IClock input for channel 2
J110IJ input for channel 1
J26IJ input for channel 2
K111IK input for channel 1
K25IK input for channel 2
Q115OQ output for channel 1
Q114OInverted Q output for channel 1
Q21OQ output for channel 2
Q22OInverted Q output for channel 2
RESET112IReset input for channel 1
RESET24IReset input for channel 2
SET19ISet input for channel 1
SET27ISet input for channel 2
VDD16—Supply
VSS8—Ground
