4 Pin Configuration and Functions

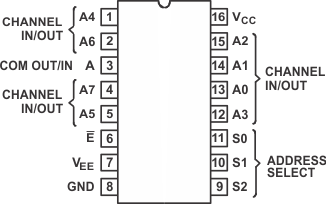

GUID-207BCFD1-F213-492B-910A-DDB2EEC734B2-low.gifFigure 4-1 CDx4HCx4051 J, N, D, NS, PW Packages 16-Pin CDIP, PDIP, SOIC, SO, TSSOP (Top View)
Table 4-1 Pin Functions for CDxHCx4051B

PIN

 TYPE(1)

DESCRIPTION

NAME

NO.

CH A4 IN/OUT

1

 I/O

Channel 4 in/out

CH A6 IN/OUT

2

 I/O Channel 6 in/out

COM OUT/IN

3

 I/O

Common out/in

CH A7 IN/OUT

4

 I/O Channel 7 in/out

CH A5 IN/OUT

5

 I/O Channel 5 in/out

!E

6

 I

Enable Channels (Active Low)

VEE

7

 —

Negative power input

GND

8

 —

Ground

S2

9

 I

Channel select 2

S1

10

 I

Channel select 1

S0

11

 I

Channel select 0

CH A3 IN/OUT

12

 I/O Channel 3 in/out

CH A0 IN/OUT

13

 I/O Channel 0 in/out

CH A1 IN/OUT

14

 I/O Channel 1 in/out

CH A2 IN/OUT

15

I/O

 Channel 2 in/out

VCC

16

 —

Positive power input
(1) I = input, O = output
GUID-60358B2B-7DA9-4CE7-88D6-1E42F072593F-low.gif Figure 4-2 CDx4HCx4052 J, N, D, NS, PW Packages 16-Pin CDIP, PDIP, SOIC, SO, TSSOP (Top View)
Table 4-2 Pin Functions for CDx4HCx4052B

PIN

 TYPE(1)

DESCRIPTION

NAME

NO.

CH B0 IN/OUT

1

I/O

Channel B0 in/out

CH B2 IN/OUT

2

 I/O

Channel B2 in/out

COM B OUT/IN

3

 I/O

B common out/in

CH B3 IN/OUT

4

 I/O

Channel B3 in/out

CH B1 IN/OUT

5

 I/O

Channel B1 in/out

!E

6

 I

Enable channels (Active Low)

VEE

7

 —

Negative power input

GND

8

 —

Ground

S1

9

 I

Channel select 1

S0

10

 I

Channel select 0

CH A3 IN/OUT

11

 I/O

Channel A3 in/out

CH A0 IN/OUT

12

 I/O

Channel A0 in/out

COM A IN/OUT

13

 I/O

A common out/in

CH A1 IN/OUT

14

 I/O

Channel A1 in/out

CH A2 IN/OUT

15

 I/O

Channel A2 in/out

VCC

16

 —

Positive power input
(1) I = input, O = output
GUID-E66ECE2E-E34C-404A-A502-A59F5F4F6C38-low.gif Figure 4-3 CDx4HCx4053 J, N, D, NS, PW Packages 16-Pin CDIP, PDIP, SOIC, SO, TSSOP (Top View)
Table 4-3 Pin Functions CDx4HCx4053B

PIN

 TYPE(1)

DESCRIPTION

NAME

NO.

B1IN/OUT

1

I/O

B channel Y in/out

B0 IN/OUT

2

I/O

B channel X in/out

C1 IN/OUT

3

I/O

C channel Y in/out

COM C OUT/IN

4

I/O

C common out/in

C0 IN/OUT

5

I/O

C channel X in/out

!E

6

I

Enable channels (Active Low)

VEE

7

 —

Negative power input

GND

8

 —

Ground

S2

9

I

Channel select 2

S1

10

I

Channel select 1

S0

11

I

Channel select 0

A0 IN/OUT

12

I/O

A channel X in/out

A1 IN/OUT

13

I/O

A channel Y in/out

COM A OUT/IN

14

I/O

A common out/in

COM B OUT/IN

15

I/O

B common out/in

VCC

16

 —

Positive power input
(1) I = input, O = output
