11.2.3 Application Curves

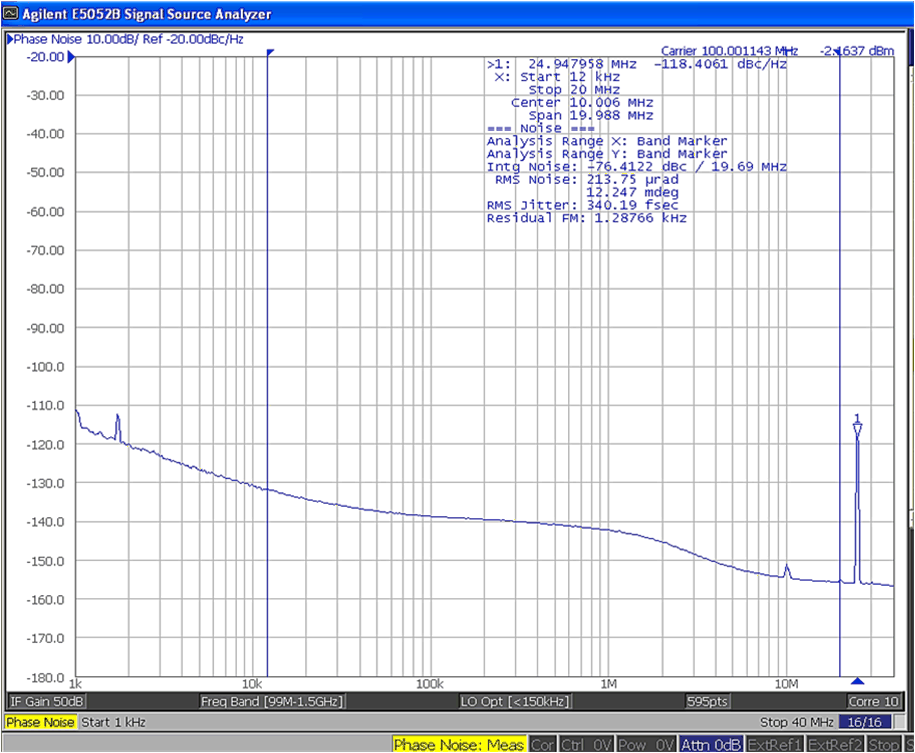

Reference: Crystal Input 25 MHzClosed-Loop Phase Noise from 2.4-GHz VCO100-MHz LP-HCSL
Figure 11-3 100-MHz LP-HCSL Output for PCIe Application
Reference: Crystal Input 25 MHzClosed-Loop Phase Noise from 2.4576-GHz VCO24.576-MHz LVCMOS
Figure 11-4 24.576MHz LVCMOS Output for Audio Clocking
