7.5 Programming

Table 7-6 Command Code Definition
BITDESCRIPTION
70 = Block Read or Block Write operation
1 = Byte Read or Byte Write operation
(6:0)Byte Offset for Byte Read, Block Read, Byte Write and Block Write operation.

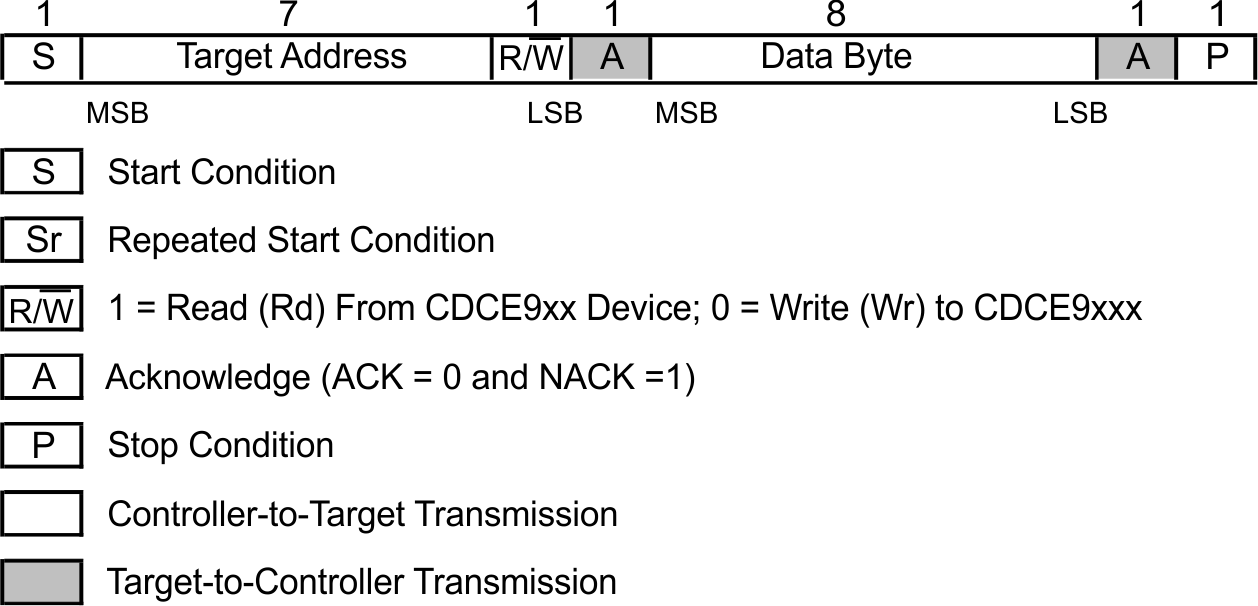

Figure 7-4 Generic Programming SequenceGUID-1C6526CF-C7F5-401C-8667-B005BE4C6C82-low.gif

Figure 7-5 Byte Write Protocol
GUID-34ED2741-320B-48A4-A5CB-E817069994D7-low.svg Figure 7-6 Byte Read Protocol

Data Byte 0 Bits [7:0] are reserved for Revision Code and Vendor Identification. The Data Byte 0 is used for internal test purpose and must not be overwritten.

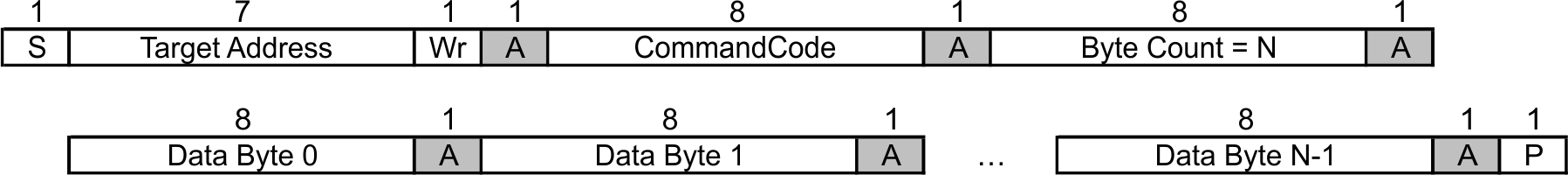

Figure 7-7 Block Write Programming
GUID-C8807933-3163-4A32-9369-9495D50A1025-low.gif Figure 7-8 Block Read Protocol
GUID-F1BB3137-BD3D-43D6-A6CA-DCD56AA44022-low.gifFigure 7-9 Timing Diagram for the SDA/SCL Serial Control Interface
