SLLS781D February 2007 – November 2014 CDCL1810
PRODUCTION DATA.
The CDCL1810 is a high-performance 10 output clock distributor. The device operates form a single 1.8-V supply. The outputs are grouped in to banks of 5 outputs each with independent frequency division ratios.
The serial interface inputs don’t have glitch suppression circuit. So, any noises or glitches at serial input lines may cause programming error. The serial interface lines should be routed in such a way that the lines would have minimum noise impact from the surroundings.

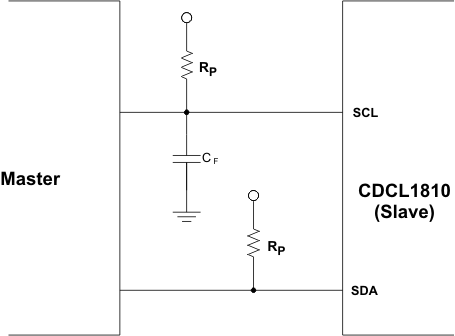

Figure 6 is recommended to improve the interconnections.
Lower RP resistor value (around 1 kΩ) should be chosen so that signals will have faster rise time. A capacitor can be connected to SCL line to ground which will act as a filter.
An I2C level translator will help to overcome the noises issue.
The device is designed to operate from an input voltage supply of 1.8 V. In the default power on reset, all device outputs are enabled and the dividers P0 and P1 are set to 1.
This section describes the SDA/SCL interface of the CDCL1810 device. The CDCL1810 operates as a slave device of the industry standard 2-pin SDA/SCL bus. It operates in the fast-mode at a bit-rate of up to 400 kbit/s and supports 7-bit addressing compatible with the popular 2-pin serial interface standard.
A6 | A5 | A4 | A3 | A2 | A1 | A0 | R/W |
---|---|---|---|---|---|---|---|
1 | 1 | 0 | 1 | 0 | ADD1 | ADD0 | 0/1 |
The device address is made up of the fixed internal address, 11010 (A6:A2), and configurable external pins ADD1 (A1) and ADD0 (A0). Four different devices with addresses 1101000, 1101001, 1101010 and 1101011, can be addressed via the same SDA/SCL bus interface. The least significant bit of the address byte designates a write or read operation.
R/W Bit:
0 = write to CDCL1810 device
1 = read from CDCL1810 device
BIT | DESCRIPTION |
---|---|
C7 | 1 = Byte Write / Read or Word Write / Read operation |
(C6:C0) | Byte Offset for Byte Write / Read and Word Write / Read operation. |
COMMAND CODE for Byte Write / Read OPERATION | HEX CODE | C7 | C6 | C5 | C4 | C3 | C2 | C1 | C0 |
---|---|---|---|---|---|---|---|---|---|
byte 0 | 80h | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
byte 1 | 81h | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
byte 2 | 82h | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
byte 3 | 83h | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 1 |
byte 4 | 84h | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
byte 5 | 85h | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 1 |
byte 6 | 86h | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 0 |
COMMAND CODE for Word Write / Read OPERATION | HEX CODE | C7 | C6 | C5 | C4 | C3 | C2 | C1 | C0 |
---|---|---|---|---|---|---|---|---|---|
word 0: byte 0 and byte 1 | 80h | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
word 1: byte 1 and byte 2 | 81h | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
word 2: byte 2 and byte 3 | 82h | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
word 3: byte 3 and byte 4 | 83h | 1 | 0 | 0 | 0 | 0 | 0 | 1 | 1 |
word 4: byte 4 and byte 5 | 84h | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 0 |
word 5: byte 5 and byte 6 | 85h | 1 | 0 | 0 | 0 | 0 | 1 | 0 | 1 |
word 6: byte 6 and byte 7 | 86h | 1 | 0 | 0 | 0 | 0 | 1 | 1 | 0 |
Byte WriteProgramming Sequence:
1 | 7 | 1 | 1 | 8 | 1 | 8 | 1 | 1 |
S | Slave Address | Wr | A | Command Code | A | Data Byte | A | P |
Byte ReadProgramming Sequence:
1 | 7 | 1 | 1 | 8 | 1 | 1 | 7 | 1 | 1 | 8 | 1 | 1 |
S | Slave Address | Wr | A | Command Code | A | S | Slave Address | Rd | A | Data Byte | N | P |
Word WriteProgramming Sequence:
1 | 7 | 1 | 1 | 8 | 1 | 8 | 1 | 8 | 1 | 1 |
S | Slave Address | Wr | A | Command Code | A | Data Byte Low | A | Data Byte High | A | P |
Word ReadProgramming Sequence:
1 | 7 | 1 | 1 | 8 | 1 | 1 | 7 | 1 | 1 | 8 | 1 | 8 | 1 | 1 |
S | Slave Address | Wr | A | Command Code | A | S | Slave Address | Rd | A | Data Byte | A | Data Byte | N | P |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | MANF[7] | Manufacturer reserved | R | ||
6 | MANF[6] | Manufacturer reserved | R | ||
5 | MANF[5] | Manufacturer reserved | R | ||
4 | MANF[4] | Manufacturer reserved | R | ||
3 | MANF[3] | Manufacturer reserved | R | ||
2 | MANF[2] | Manufacturer reserved | R | ||
1 | MANF[1] | Manufacturer reserved | R | ||
0 | MANF[0] | Manufacturer reserved | R |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | RES | Reserved | R/W | 0 | |
6 | RES | Reserved | R/W | 0 | |
5 | ENPH | Phase select enable | R/W | 1 | |
4 | PH1[4] | Phase select for YP[9:5] and YN[9:5] | R/W | 0 | Table 4, Table 5 |
3 | PH1[3] | Phase select for YP[9:5] and YN[9:5] | R/W | 0 | Table 4, Table 5 |
2 | PH1[2] | Phase select for YP[9:5] and YN[9:5] | R/W | 0 | Table 4, Table 5 |
1 | PH1[1] | Phase select for YP[9:5] and YN[9:5] | R/W | 0 | Table 4, Table 5 |
0 | PH1[0] | Phase select for YP[9:5] and YN[9:5] | R/W | 0 | Table 4, Table 5 |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | RES | Reserved | R/W | 0 | |
6 | RES | Reserved | R/W | 0 | |
5 | ENP1 | Post-divider P1 enable; if 0 output YP[9:5] and YN[9:5] are disabled | R/W | 1 | |
4 | RES | Reserved | R/W | 1 | |
3 | SELP1[3] | Divide ratio select for post-divider P1 | R/W | 0 | Table 3 |
2 | SELP1[2] | Divide ratio select for post-divider P1 | R/W | 0 | Table 3 |
1 | SELP1[1] | Divide ratio select for post-divider P1 | R/W | 0 | Table 3 |
0 | SELP1[0] | Divide ratio select for post-divider P1 | R/W | 0 | Table 3 |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | RES | Reserved | R/W | 0 | |
6 | RES | Reserved | R/W | 0 | |
5 | RES | Reserved | R/W | 0 | |
4 | PH0[4] | Phase select for YP[4:0] and YN[4:0] | R/W | 0 | Table 4, Table 5 |
3 | PH0[3] | Phase select for YP[4:0] and YN[4:0] | R/W | 0 | Table 4, Table 5 |
2 | PH0[2] | Phase select for YP[4:0] and YN[4:0] | R/W | 0 | Table 4, Table 5 |
1 | PH0[1] | Phase select for YP[4:0] and YN[4:0] | R/W | 0 | Table 4, Table 5 |
0 | PH0[0] | Phase select for YP[4:0] and YN[4:0] | R/W | 0 | Table 4, Table 5 |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | RES | Reserved | R/W | 0 | |
6 | RES | Reserved | R/W | 0 | |
5 | ENP0 | Post-divider P0 enable. If 0, output YP[4:0] and YN[4:0] are disabled | R/W | 1 | |
4 | RES | Reserved | R/W | 1 | |
3 | SELP0[3] | Divide ratio select for post-divider P0 | R/W | 0 | Table 3 |
2 | SELP0[2] | Divide ratio select for post-divider P0 | R/W | 0 | Table 3 |
1 | SELP0[1] | Divide ratio select for post-divider P0 | R/W | 0 | Table 3 |
0 | SELP0[0] | Divide ratio select for post-divider P0 | R/W | 0 | Table 3 |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | EN | Chip enable; if 0 chip is in Iddq mode | R/W | 1 | |
6 | RES | Reserved | R | 1 | |
5 | ENDRV9 | YP[9], YN[9] enable; if 0 output is disabled | R/W | 1 | |
4 | ENDRV8 | YP[8], YN[8] enable; if 0 output is disabled | R/W | 1 | |
3 | ENDRV7 | YP[7], YN[7] enable; if 0 output is disabled | R/W | 1 | |
2 | ENDRV6 | YP[6], YN[6] enable; if 0 output is disabled | R/W | 1 | |
1 | ENDRV5 | YP[5], YN[5] enable; if 0 output is disabled | R/W | 1 | |
0 | ENDRV4 | YP[4], YN[4] enable; if 0 output is disabled | R/W | 1 |
BIT | BIT NAME | DESCRIPTION/FUNCTION | TYPE | POWER UP CONDITION |
REFERENCE TO |
---|---|---|---|---|---|
7 | ENDRV3 | YP[3], YN[3] enable; if 0 output is disabled | R/W | 1 | |
6 | ENDRV2 | YP[2], YN[2] enable; if 0 output is disabled | R/W | 1 | |
5 | ENDRV1 | YP[1], YN[1] enable; if 0 output is disabled | R/W | 1 | |
4 | ENDRV0 | YP[0], YN[0] enable; if 0 output is disabled | R/W | 1 | |
3 | RES | Reserved | R/W | 0 | |
2 | RES | Reserved | R/W | 0 | |
1 | RES | Reserved | R/W | 0 | |
0 | RES | Reserved | R/W | 0 |
DIVIDE RATIO |
SELP1[3] or SELP0[3] |
SELP1[2] or SELP0[2] |
SELP1[1] or SELP0[1] |
SELP1[0] or SELP0[0] |
NOTES |
---|---|---|---|---|---|
1 | 0 | 0 | 0 | 0 | Default |
2 | 0 | 0 | 0 | 1 | |
4 | 0 | 0 | 1 | 0 | |
5 | 0 | 0 | 1 | 1 | |
8 | 0 | 1 | 0 | 0 | |
10 | 0 | 1 | 0 | 1 | |
16 | 0 | 1 | 1 | 0 | |
20 | 0 | 1 | 1 | 1 | |
32 | 1 | 0 | 0 | 0 | |
40 | 1 | 0 | 0 | 1 | |
80 | 1 | 0 | 1 | 0 |
DIVIDE RATIO |
WITH PH0[4:0] = 00000 | PHASE LEAD (RADIAN) |
NOTES | ||||
---|---|---|---|---|---|---|---|
PH1 | |||||||
[4] | [3] | [2] | [1] | [0] | |||
5 | X | X | X | X | X | 0 | Phase setting not available |
10 | X | X | X | 0 | X | 0 | |
X | X | X | 1 | X | (2π/2) | ||
20 | X | X | 0 | 0 | X | 0 | |
X | X | 0 | 1 | X | (2π/4) | ||
X | X | 1 | 0 | X | 2(2π/4) | ||
X | X | 1 | 1 | X | 3(2π/4) | ||
40 | X | 0 | 0 | 0 | X | 0 | |
X | 0 | 0 | 1 | X | (2π/8) | ||
X | 0 | 1 | 0 | X | 2(2π/8) | ||
X | 0 | 1 | 1 | X | 3(2π/8) | ||
X | 1 | 0 | 0 | X | 4(2π/8) | ||
X | 1 | 0 | 1 | X | 5(2π/8) | ||
X | 1 | 1 | 0 | X | 6(2π/8) | ||
X | 1 | 1 | 1 | X | 7(2π/8) | ||
80 | 0 | 0 | 0 | 0 | X | 0 | |
0 | 0 | 0 | 1 | X | (2π/16) | ||
0 | 0 | 1 | 0 | X | 2(2π/16) | ||
0 | 0 | 1 | 1 | X | 3(2π/16) | ||
0 | 1 | 0 | 0 | X | 4(2π/16) | ||
0 | 1 | 0 | 1 | X | 5(2π/16) | ||
0 | 1 | 1 | 0 | X | 6(2π/16) | ||
0 | 1 | 1 | 1 | X | 7(2π/16) | ||
1 | 0 | 0 | 0 | X | 8(2π/16) | ||
1 | 0 | 0 | 1 | X | 9(2π/16) | ||
1 | 0 | 1 | 0 | X | 10(2π/16) | ||
1 | 0 | 1 | 1 | X | 11(2π/16) | ||
1 | 1 | 0 | 0 | X | 12(2π/16) | ||
1 | 1 | 0 | 1 | X | 13(2π/16) | ||
1 | 1 | 1 | 0 | X | 14(2π/16) | ||
1 | 1 | 1 | 1 | X | 15(2π/16) |
DIVIDE RATIO |
WITH PH0[4:0] = 00000 | PHASE LEAD (RADIAN) |
NOTES | ||||
---|---|---|---|---|---|---|---|
PH1 | |||||||
[4] | [3] | [2] | [1] | [0] | |||
1 | X | X | X | X | X | 0 | 00000: Default Phase setting not available |
2 | X | X | X | X | 0 | 0 | |
X | X | X | X | 1 | (2π/2) | ||
4 | X | X | X | 0 | 0 | 0 | |
X | X | X | 0 | 1 | (2π/4) | ||
X | X | X | 1 | 0 | 2(2π/4) | ||
X | X | X | 1 | 1 | 3(2π/4) | ||
8 | X | X | 0 | 0 | 0 | 0 | |
X | X | 0 | 0 | 1 | (2π/8) | ||
X | X | 0 | 1 | 0 | 2(2π/8) | ||
X | X | 0 | 1 | 1 | 3(2π/8) | ||
X | X | 1 | 0 | 0 | 4(2π/8) | ||
X | X | 1 | 0 | 1 | 5(2π/8) | ||
X | X | 1 | 1 | 0 | 6(2π/8) | ||
X | X | 1 | 1 | 1 | 7(2π/8) | ||
16 | X | 0 | 0 | 0 | 0 | 0 | |
X | 0 | 0 | 0 | 1 | (2π/16) | ||
X | 0 | 0 | 1 | 0 | 2(2π/16) | ||
X | 0 | 0 | 1 | 1 | 3(2π/16) | ||
X | 0 | 1 | 0 | 0 | 4(2π/16) | ||
X | 0 | 1 | 0 | 1 | 5(2π/16) | ||
X | 0 | 1 | 1 | 0 | 6(2π/16) | ||
X | 0 | 1 | 1 | 1 | 7(2π/16) | ||
X | 1 | 0 | 0 | 0 | 8(2π/16) | ||
X | 1 | 0 | 0 | 1 | 9(2π/16) | ||
X | 1 | 0 | 1 | 0 | 10(2π/16) | ||
X | 1 | 0 | 1 | 1 | 11(2π/16) | ||
X | 1 | 1 | 0 | 0 | 12(2π/16) | ||
X | 1 | 1 | 0 | 1 | 13(2π/16) | ||
X | 1 | 1 | 1 | 0 | 14(2π/16) | ||
X | 1 | 1 | 1 | 1 | 15(2π/16) | ||
32 | 0 | 0 | 0 | 0 | 0 | 0 | |
0 | 0 | 0 | 0 | 1 | (2π/32) | ||
0 | 0 | 0 | 1 | 0 | 2(2π/32) | ||
0 | 0 | 0 | 1 | 1 | 3(2π/32) | ||
0 | 0 | 1 | 0 | 0 | 4(2π/32) | ||
0 | 0 | 1 | 0 | 1 | 5(2π/32) | ||
0 | 0 | 1 | 1 | 0 | 6(2π/32) | ||
0 | 0 | 1 | 1 | 1 | 7(2π/32) | ||
0 | 1 | 0 | 0 | 0 | 8(2π/32) | ||
0 | 1 | 0 | 0 | 1 | 9(2π/32) | ||
0 | 1 | 0 | 1 | 0 | 10(2π/32) | ||
0 | 1 | 0 | 1 | 1 | 11(2π/32) | ||
0 | 1 | 1 | 0 | 0 | 12(2π/32) | ||
0 | 1 | 1 | 0 | 1 | 13(2π/32) | ||
0 | 1 | 1 | 1 | 0 | 14(2π/32) | ||
0 | 1 | 1 | 1 | 1 | 15(2π/32) | ||
1 | 0 | 0 | 0 | 0 | 16(2π/32) | ||
1 | 0 | 0 | 0 | 1 | 17(2π/32) | ||
1 | 0 | 0 | 1 | 0 | 18(2π/32) | ||
1 | 0 | 0 | 1 | 1 | 19(2π/32) | ||
1 | 0 | 1 | 0 | 0 | 20(2π/32) | ||
1 | 0 | 1 | 0 | 1 | 21(2π/32) | ||
1 | 0 | 1 | 1 | 0 | 22(2π/32) | ||
1 | 0 | 1 | 1 | 1 | 23(2π/32) | ||
1 | 1 | 0 | 0 | 0 | 24(2π/32) | ||
1 | 1 | 0 | 0 | 1 | 25(2π/32) | ||
1 | 1 | 0 | 1 | 0 | 26(2π/32) | ||
1 | 1 | 0 | 1 | 1 | 27(2π/32) | ||
1 | 1 | 1 | 0 | 0 | 28(2π/32) | ||
1 | 1 | 1 | 0 | 1 | 29(2π/32) | ||
1 | 1 | 1 | 1 | 0 | 30(2π/32) | ||
1 | 1 | 1 | 1 | 1 | 31(2π/32) |
