Description

This 20-V, 990-mΩ, N-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications. Ultra-low capacitance improves switching speeds. When used in data line applications, the low capacitance minimizes noise coupling. This technology is capable of replacing standard small signal MOSFETs while providing a substantial reduction in footprint size.

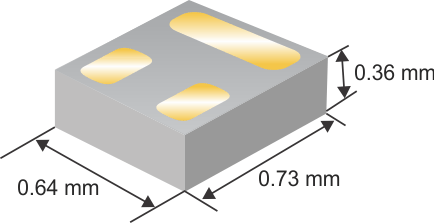

GUID-3D3E4E6C-B356-436C-AC2D-751B112D563B-low.gif Typical Part Dimensions
Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 20 V
Qg Gate Charge Total (4.5 V) 0.216 nC
Qgd Gate Charge Gate-to-Drain 0.027 nC
RDS(on) Drain-to-Source
On-Resistance
VGS = 2.5 V 2220 mΩ
VGS = 4.5 V 1170
VGS = 8 V 990
VGS(th) Threshold Voltage 1.1 V
Device Information(1)
DEVICE QTY MEDIA PACKAGE SHIP
CSD15380F3 3000 7-Inch Reel Femto
0.73-mm × 0.64-mm
Land Grid Array (LGA)
Tape
and
Reel
CSD15380F3T 250
For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°C (unless otherwise stated) VALUE UNIT
VDS Drain-to-Source Voltage 20 V
VGS Gate-to-Source Voltage 10 V
ID Continuous Drain Current(1) 0.9 A
Continuous Drain Current(2) 0.5
IDM Pulsed Drain Current(3) 1.6 A
PD Power Dissipation(1) 1.4 W
Power Dissipation(2) 0.5
V(ESD) Human-Body Model (HBM) 4 kV
Charged-Device Model (CDM) 2
TJ,
Tstg
Operating Junction and
Storage Temperature
–55 to 150 °C
Typical RθJA = 90°C/W on 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 0.06-in (1.52-mm) thick FR4 PCB
Typical RθJA = 255°C/W on min Cu board
Pulse duration ≤ 100 μs, duty cycle ≤ 1%.
GUID-304492D0-C46A-4D0A-BFBA-4B7A6BE46496-low.gif Top View
