7 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most current data available for the designated devices. This data is subject to change without notice and revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

7.1 Q3 Package Dimensions

DIM MILLIMETERS INCHES
MIN NOM MAX MIN NOM MAX
A 0.950 1.000 1.100 0.037 0.039 0.043
A1 0.000 0.000 0.050 0.000 0.000 0.002
b 0.280 0.340 0.400 0.011 0.013 0.016
b1 0.310 NOM 0.012 NOM
c 0.150 0.200 0.250 0.006 0.008 0.010
D 3.200 3.300 3.400 0.126 0.130 0.134
D2 1.650 1.750 1.800 0.065 0.069 0.071
d 0.150 0.200 0.250 0.006 0.008 0.010
d1 0.300 0.350 0.400 0.012 0.014 0.016
E 3.200 3.300 3.400 0.126 0.130 0.134
E2 2.350 2.450 2.550 0.093 0.096 0.100
e 0.650 TYP 0.026
H 0.35 0.450 0.550 0.014 0.018 0.022
K 0.650 TYP 0.026 TYP
L 0.35 0.450 0.550 0.014 0.018 0.022
L1 0 — 0 0 — 0
θ 0 — 0 0 — 0

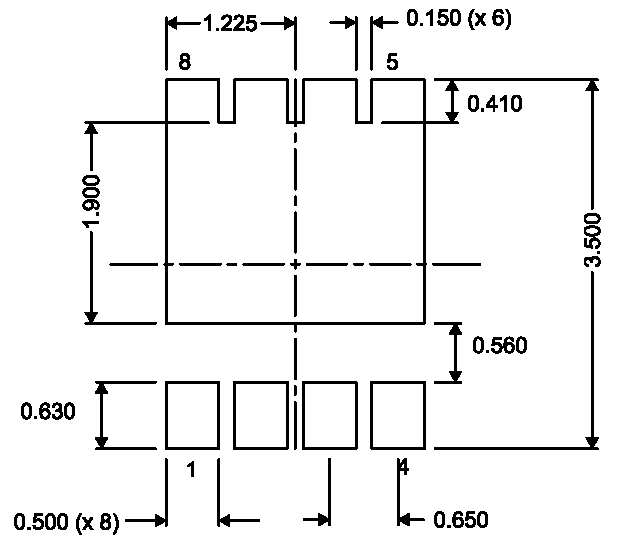

7.2 Recommended PCB Pattern


For recommended circuit layout for PCB designs, see application note SLPA005 – Reducing Ringing Through PCB Layout Techniques.

7.3 Recommended Stencil Opening


All dimensions are in mm, unless otherwise specified.

7.4 Q3 Tape and Reel Information


Notes:

  1. 10 sprocket hole pitch cumulative tolerance ±0.2
  2. Camber not to exceed 1 mm in 100 mm, noncumulative over 250 mm
  3. Material: black static dissipative polystyrene
  4. All dimensions are in mm (unless otherwise specified).
  5. Thickness: 0.30 ±0.05 mm
  6. MSL1 260°C (IR and Convection) PbF Reflow Compatible
