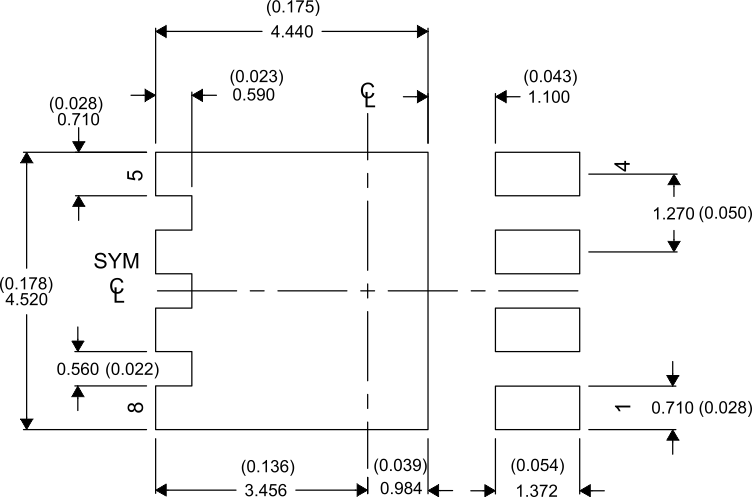

7.2 Recommended PCB Pattern

CSD18532NQ5B Recommended_PCB.gif

For recommended circuit layout for PCB designs, see Reducing Ringing Through PCB Layout Techniques (SLPA005).
