5 Specifications

5.1 Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, ID = 250 μA 60 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 48 V 1 μA
IGSS Gate-to-source leakage current VDS = 0 V, VGS = 20 V 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, I = 250 μA 1.5 1.9 2.3 V
RDS(on) Drain-to-source on resistance VGS = 4.5 V, ID = 28 A 2.6 3.3 mΩ
VGS = 10 V, ID = 28 A 1.8 2.2
gfs Transconductance VDS = 6 V, ID = 28 A 116 S
DYNAMIC CHARACTERISTICS
Ciss Input capacitance VGS = 0 V, VDS = 30 V, ƒ = 1 MHz 3250 4230 pF
Coss Output capacitance 622 808 pF
Crss Reverse transfer capacitance 15 20 pF
RG Series gate resistance 0.8 1.6 Ω
Qg Gate charge total (4.5 V) VDS = 30 V, IDD = 28 A 20 26 nC
Qg Gate charge total (10 V) 41 53 nC
Qgd Gate charge gate-to-drain 6.7 nC
Qgs Gate charge gate-to-source 8.8 nC
Qg(th) Gate charge at Vth 6.3 nC
Qoss Output charge VDS = 30 V, VGS = 0 V 83 nC
td(on) Turnon delay time VDS = 30 V, VGS = 10 V,
IDS = 28 A, RG = 0 Ω		 6 ns
tr Rise time 9 ns
td(off) Turnoff delay time 20 ns
tf Fall time 3 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage ISD = 28 A, VGS = 0 V 0.8 1 V
Qrr Reverse recovery charge VDS= 30 V, IF = 28 A,
di/dt = 300 A/μs		 145 nC
trr Reverse recovery time 82 ns

5.2 Thermal Information

TA = 25°C (unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJC Junction-to-case thermal resistance(1) 0.8 °C/W
RθJA Junction-to-ambient thermal resistance(1)(2) 50
(1) RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in
(3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.

CSD18540Q5B M0137-01_LPS198.gif
Max RθJA = 50°C/W when mounted on 1 in2 (6.45 cm2) of
2-oz (0.071-mm) thick Cu.
CSD18540Q5B M0137-02_LPS198.gif
Max RθJA = 125°C/W when mounted on a minimum pad area of 2-oz (0.071-mm) thick Cu.

5.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)
CSD18540Q5B D001_SLPS488.png
Figure 1. Transient Thermal Impedance
CSD18540Q5B D002_SLPS488_r2.gif
Figure 2. Saturation Characteristics
CSD18540Q5B D004_SLPS488.gif
ID = 28 A VDS = 30 V
Figure 4. Gate Charge
CSD18540Q5B D006_SLPS488.gif
ID = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD18540Q5B D008_SLPS488.gif
ID = 28 A
Figure 8. Normalized On-State Resistance vs Temperature
CSD18540Q5B D010_SLPS488.gif
Single Pulse, Max RθJC = 0.8°C/W
Figure 10. Maximum Safe Operating Area
CSD18540Q5B D012_SLPS488.gif
Figure 12. Maximum Drain Current vs Temperature

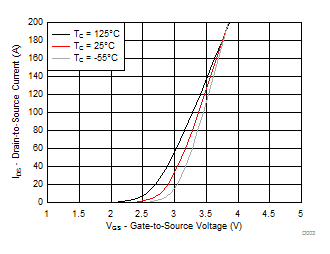

CSD18540Q5B D003_SLPS488.gif
VDS = 5 V
Figure 3. Transfer Characteristics

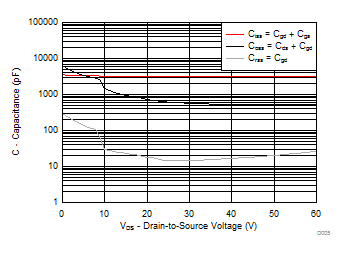

CSD18540Q5B D005_SLPS488.gif
Figure 5. Capacitance
CSD18540Q5B D007_SLPS488.gif
Figure 7. On-State Resistance vs Gate-to-Source Voltage
CSD18540Q5B D009_SLPS488.gif
Figure 9. Typical Diode Forward Voltage
CSD18540Q5B D011_SLPS488.gif
Figure 11. Single Pulse Unclamped Inductive Switching
