5.3
Typical MOSFET Characteristics
T
A
= 25°C (unless otherwise stated)
Figure 5-1
Transient Thermal Impedance
Figure 5-2
Saturation Characteristics
V
DS
= 5 V

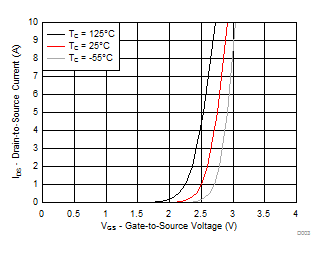

Figure 5-3
Transfer Characteristics
I
D
= 1 A
V
DS
= 30 V
Figure 5-4
Gate Charge
I
D
= 250 µA

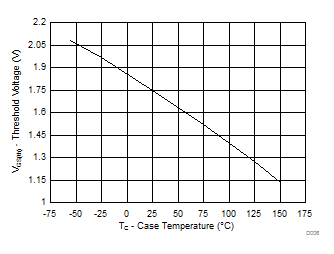

Figure 5-6
Threshold Voltage vs Temperature
I
D
= 1 A
Figure 5-8
Normalized On-State Resistance vs Temperature
Single pulse, typ R
θJA
= 245°C/W
Figure 5-10
Maximum Safe Operating Area (SOA)
Figure 5-12
Maximum Drain Current vs Temperature
Figure 5-5
Capacitance
Figure 5-7
On-State Resistance vs Gate-to-Source Voltage
Figure 5-9
Typical Diode Forward Voltage
Figure 5-11
Single Pulse Unclamped Inductive Switching
