3.3 Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

CSD19538Q2 Transient Thermal Impedance
Figure 3-1 Transient Thermal Impedance
CSD19538Q2 Saturation Characteristics
Figure 3-2 Saturation Characteristics
CSD19538Q2 Gate Charge
ID = 5AVDS = 50V
Figure 3-4 Gate Charge
CSD19538Q2 Threshold Voltage vs Temperature
ID = 250µA
Figure 3-6 Threshold Voltage vs Temperature
CSD19538Q2 Normalized On-State Resistance vs Temperature
ID = 5A
Figure 3-8 Normalized On-State Resistance vs Temperature
CSD19538Q2 Maximum Safe Operating Area
Single pulse, max RθJC = 6.2°C/W
Figure 3-10 Maximum Safe Operating Area
CSD19538Q2 Maximum Drain Current vs Temperature
Figure 3-12 Maximum Drain Current vs Temperature

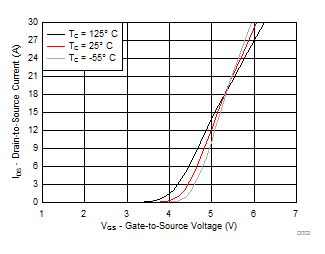

CSD19538Q2 Transfer Characteristics
VDS = 5V
Figure 3-3 Transfer Characteristics

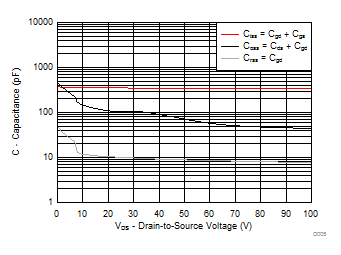

CSD19538Q2 Capacitance
Figure 3-5 Capacitance
CSD19538Q2 On-State Resistance vs Gate-to-Source Voltage
Figure 3-7 On-State Resistance vs Gate-to-Source Voltage

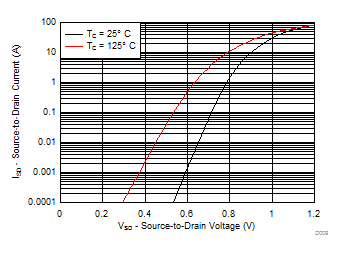

CSD19538Q2 Typical Diode Forward Voltage
Figure 3-9 Typical Diode Forward Voltage

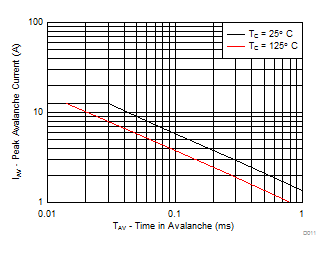

CSD19538Q2 Single Pulse Unclamped Inductive Switching
Figure 3-11 Single Pulse Unclamped Inductive Switching
