1 Features

  • Low-Resistance
  • Small Footprint 1.5 mm × 1.5 mm
  • Gate ESD Protection –3 kV
  • Pb Free
  • RoHS Compliant
  • Halogen Free
  • Gate-Source Voltage Clamp

2 Applications

  • Battery Management
  • Battery Protection

3 Description

This 21 mΩ, 20 V device is designed to deliver the lowest on resistance and gate charge in a small 1.5 mm × 1.5 mm chip scale package with excellent thermal characteristics in an ultra-low profile. Low on resistance coupled with the small footprint and low profile make the device ideal for battery operated space constrained applications.


Product Summary

TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage –20 V
Qg Gate Charge Total (–4.5 V) 5.8 nC
Qgd Gate Charge Gate-to-Drain 0.8 nC
RDS(on) Drain-to-Source On Resistance VGS = –1.8 V 40 mΩ
VGS = –2.5 V 26 mΩ
VGS = –4.5 V 21 mΩ
VGS(th) Threshold Voltage –0.75 V

Ordering Information(1)

Device Qty Media Package Ship
CSD25202W15 3000 7-Inch Reel 1.5-mm × 1.5-mm Wafer Level Package Tape and Reel
CSD25202W15T 250 7-Inch Reel
  1. For all available packages, see the orderable addendum at the end of the data sheet.


Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage –20 V
VGS Gate-to-Source Voltage –6 V
ID Continuous Drain Current(1) –4 A
Pulsed Drain Current(2) –38 A
IG Continuous Gate Current(1) –0.5 A
Pulsed Gate Current(2) –7 A
PD Power Dissipation 0.5 W
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
  1. Ball limited
  2. Typical RθJA = 220ºC/W, pulse duration ≤100 µs, duty cycle ≤ 1%

RDS(on) vs VGS

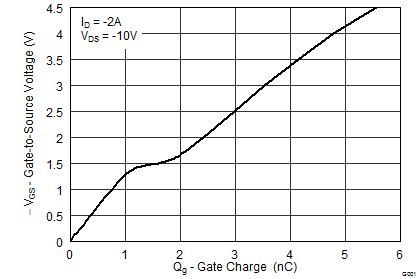

Gate Charge
