Typical MOSFET Characteristics

TA = 25°C (unless otherwise stated)

GUID-FC6050DA-1A03-4B37-8A8F-7B69F2FBEA55-low.gifFigure 5-1 Saturation Characteristics
GUID-C5573F79-B384-4CC7-9A45-A0001C024D7E-low.pngFigure 5-3 Transient Thermal Impedance
VDS = –5 V

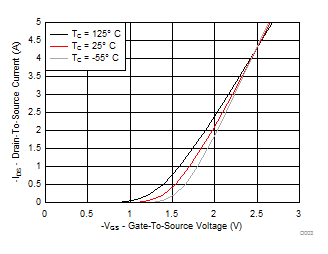

Figure 5-2 Transfer Characteristics
ID = –0.4 AVDS = –10 V
Figure 5-4 Gate Charge
ID = –250 µA
Figure 5-6 Threshold Voltage vs Temperature
ID = –0.4 A
Figure 5-8 Normalized On-State Resistance vs Temperature
Single pulse, max RθJA = 245°C/W

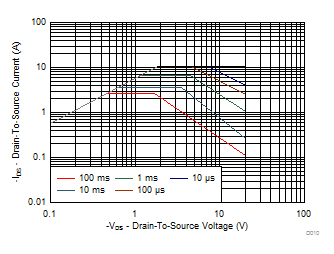

Figure 5-10 Maximum Safe Operating Area

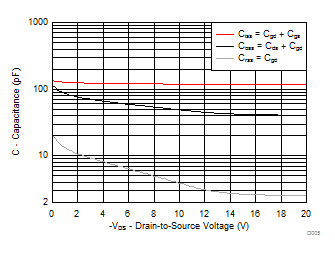

GUID-81533C82-2E6D-471C-8B49-113ABD81765D-low.gifFigure 5-5 Capacitance

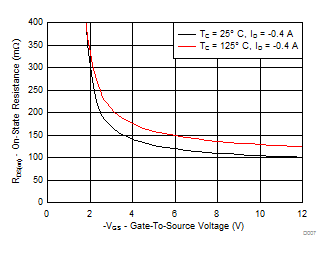

GUID-59567C62-04D3-4900-8A1C-6C094EE99F0B-low.gifFigure 5-7 On-State Resistance vs Gate-to-Source Voltage

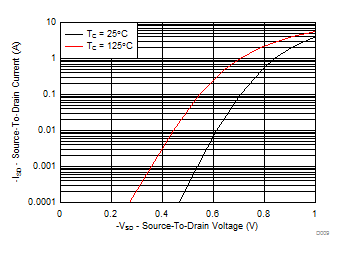

GUID-CA778313-FE39-4A9C-B8B9-871B61783EC1-low.gifFigure 5-9 Typical Diode Forward Voltage
GUID-D4D56555-22C4-4C28-B621-9067FF5C837A-low.gifFigure 5-11 Maximum Drain Current vs Temperature
