Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

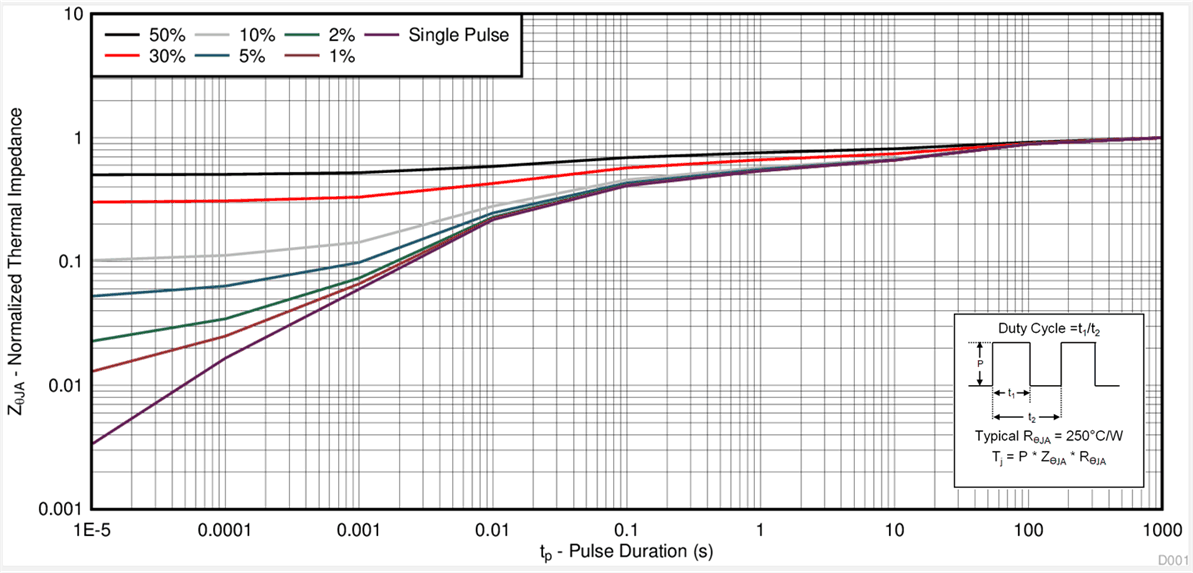

GUID-3D5BD281-872B-4796-B065-F6F0E71250D1-low.gifFigure 5-1 Transient Thermal Impedance
GUID-263E963E-CB9F-44E9-99B9-E746D2E702D6-low.pngFigure 5-2 Saturation Characteristics
GUID-2A1AF4DA-E9C6-4D80-B52B-FA8E2D6FE2A7-low.pngFigure 5-3 Transfer Characteristics
GUID-DFA459EB-497F-432F-B799-EA1D42B1DA47-low.pngFigure 5-4 Gate Charge
GUID-1892E015-3AF6-468A-8D4D-7EC6F8950F87-low.pngFigure 5-6 Threshold Voltage vs Temperature
GUID-81CADFAB-0B7D-4F2A-BDD2-5953BC61A887-low.pngFigure 5-8 Normalized On-State Resistance vs Temperature
Single Pulse Typical RθJA =250°C/W (min Cu)

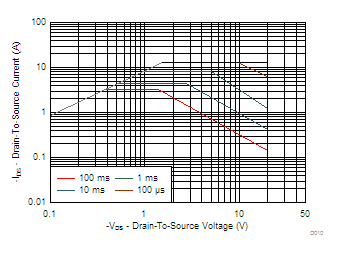

Figure 5-10 Maximum Safe Operating Area
GUID-8EB93F01-1A01-4F90-A23F-31D1694F3E59-low.pngFigure 5-5 Capacitance
GUID-C09F85AF-86AB-44E5-93C5-34C8646D4F47-low.pngFigure 5-7 On-State Resistance vs Gate-to-Source Voltage
GUID-30C7FD61-BFF6-4AE3-AF60-5143738EB43F-low.pngFigure 5-9 Typical Diode Forward Voltage
Typical RθJA = 90°C/W (max Cu)

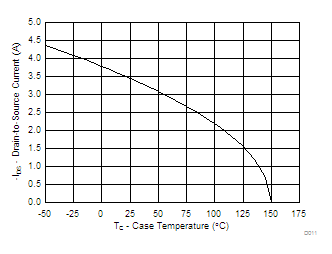

Figure 5-11 Maximum Drain Current vs Temperature
