DATA SHEET

CSD85302L 20 V Dual N-Channel NexFET™ Power MOSFET

1 Features

  • Common Drain Configuration
  • Low On-Resistance
  • Small Footprint of 1.35 mm × 1.35 mm
  • Pb Free and Halogen Free
  • RoHS Compliant
  • ESD HBM Protection >2.5 kV

2 Applications

  • USB Type-C/PD
  • Battery Management
  • Battery Protection

3 Description

This 20 V, 18.7 mΩ, 1.35 mm × 1.35 mm LGA Dual NexFET™ power MOSFET is designed to minimize resistance in the smallest footprint. Its small footprint and common drain configuration make the device ideal for battery-powered applications in small handheld devices.

Top View
CSD85302L Pin_Map.png
Configuration

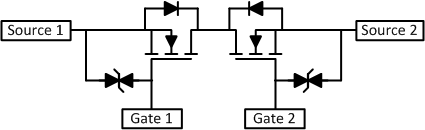

CSD85302L Configuration.gif

Text added for spacing

Product Summary

TA = 25°C TYPICAL VALUE UNIT
VS1S2 Source-to-Source Voltage 20 V
Qg Gate Charge Total (4.5 V) 6 nC
Qgd Gate Charge Gate-to-Drain 1.4 nC
RS1S2(on) Source-to-Source On-Resistance VGS = 2.5 V 29 mΩ
VGS = 4.5 V 20 mΩ
VGS = 6.5 V 18.7 mΩ
VGS(th) Threshold Voltage 0.9 V

Ordering Information(1)

DEVICE QTY MEDIA PACKAGE SHIP
CSD85302L 3000 7-Inch Reel 1.35 × 1.35 mm Land Grid Array (LGA) Package Tape and Reel
CSD85302LT 250
  1. For all available packages, see the orderable addendum at the end of the data sheet.

Absolute Maximum Ratings

TA = 25°C VALUE UNIT
VS1S2 Source-to-Source Voltage 20 V
VGS Gate-to-Source Voltage ±10 V
IS Continuous Source Current(1) 7 A
ISM Pulsed Source Current(2) 37 A
PD Power Dissipation(1) 1.7 W
V(ESD) Human Body Model (HBM) 2.5 kV
TJ,
Tstg		 Operating Junction and
Storage Temperature Range		 –55 to 150 °C
  1. Typical RθJA = 75°C/W when mounted on a 1 inch2, 2 oz. Cu pad on a 0.06 inch thick FR4 PCB.
  2. Max RθJA = 90°C/W, pulse duration ≤100 μs, duty cycle ≤1%

.

RDS(on) vs VGS

CSD85302L D007_SLPS558.gif

.

Gate Charge

CSD85302L D004_SLPS558_FP.gif

4 Revision History

DATE REVISION NOTES
November 2015 * Initial release.

5 Specifications

5.1 Electrical Characteristics

(TA = 25°C unless otherwise stated)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
STATIC CHARACTERISTICS
BVS1S2 Source-to-source voltage VGS = 0 V, IS = 250 μA 20 V
IS1S2 Source-to-source leakage current VGS = 0 V, VS1S2 = 16 V 1 μA
IGSS Gate-to-source leakage current VS1S2 = 0 V, VGS = 6 V 0.5 µA
VS1S2 = 0 V, VGS = 10V 4 µA
VGS(th) Gate-to-source threshold voltage VS1S2 = VGS, IS = 250 μA 0.68 0.9 1.3 V
RS1S2(on) Source-to-source on-resistance VGS = 2.5 V, IS = 2 A 20 29 36 mΩ
VGS = 4.5 V, IS = 2 A 14 20 24 mΩ
VGS = 6.5 V, IS = 2 A 13 18.7 22.5 mΩ
gfs Transconductance VS1S2 = 2 V, IS = 2 A 19 S
DYNAMIC CHARACTERISTICS(1)
Ciss Input capacitance VGS = 0 V, VS1S2 = 10 V, ƒ = 1 MHz 718 933 pF
Coss Output capacitance 92 120 pF
Crss Reverse transfer capacitance 61 79 pF
Qg Gate charge total (4.5 V) VS1S2 = 10 V, IS = 2 A 6.0 7.8 nC
Qgd Gate charge gate-to-drain 1.4 nC
Qgs Gate charge gate-to-source 1.2 nC
Qg(th) Gate charge at Vth 0.6 nC
Qoss Output charge VS1S2 = 10 V, VGS = 0 V 2.3 nC
td(on) Turn-on delay time VS1S2 = 10 V, VGS = 4.5 V,
IS1S2 = 2 A, RG = 0 Ω		 37 ns
tr Rise time 54 ns
td(off) Turn-off delay time 173 ns
tf Fall time 99 ns
(1) Charge and timing values specified are per single FET.

5.2 Thermal Information

(TA = 25°C unless otherwise stated)
THERMAL METRIC MIN TYP MAX UNIT
RθJA Junction-to-ambient thermal resistance(1) 75 °C/W
Junction-to-ambient thermal resistance(2) 175 °C/W
(1) Device mounted on FR4 material with 1 inch2 (6.45 cm2), 2 oz. (0.071 mm thick) Cu.
(2) Device mounted on FR4 material with minimum Cu mounting area.

5.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)
CSD85302L D001_SLPS558_r2.png
Figure 1. Transient Thermal Impedance
CSD85302L D002_SLPS558_r3.gif
VG2S2 = 9 V
Figure 2. Saturation Characteristics
CSD85302L D004_SLPS558.gif
IS = 2 A VS1S2 = 6 V
Figure 4. Gate Charge
CSD85302L D006_SLPS558.gif
IS = 250 µA
Figure 6. Threshold Voltage vs Temperature
CSD85302L D008_SLPS558.gif
IS = 2 A
Figure 8. Normalized On-State Resistance vs Temperature
CSD85302L D010_SLPS558_r2.gif
Typical RθJA = 75°C/W
Figure 10. Maximum Source Current vs Temperature
CSD85302L D003_SLPS558_r2.gif
VS1S2 = 5 V VG2S2 = 9 V
Figure 3. Transfer Characteristics
CSD85302L D005_SLPS558.gif
Figure 5. Capacitance
CSD85302L D007_SLPS558.gif
Figure 7. On-State Source-to-Source Resistance vs
Gate-to-Source Voltage
CSD85302L D009_SLPS558_r2.gif
Single pulse, max RθJA = 90°C/W
Figure 9. Maximum Safe Operating Area
