5.5 Electrical Characteristics

TA = 25°C (unless otherwise stated)
PARAMETER TEST CONDITIONS Q1 Control FET Q2 Sync FET UNIT
MIN TYP MAX MIN TYP MAX
STATIC CHARACTERISTICS
BVDSS Drain-to-source voltage VGS = 0 V, IDS = 250 µA 30 30 V
IDSS Drain-to-source leakage current VGS = 0 V, VDS = 24 V 1 1 µA
IGSS Gate-to-source leakage current VDS = 0 V,
VGS = +10 V / –8 V		 100 100 nA
VGS(th) Gate-to-source threshold voltage VDS = VGS, IDS = 250 µA 1.0 1.9 0.75 1.20 V
ZDS(on) Effective AC on-impedance VIN = 12 V, VGS = 5 V, VOUT = 1.3 V, IOUT = 15 A, ƒSW = 500 kHz,
LOUT = 950 nH		 6.7 1.9 mΩ
gfs Transconductance VDS = 3 V, IDS = 15 A 59 107 S
DYNAMIC CHARACTERISTICS
CISS Input capacitance VGS = 0 V, VDS = 15 V,
ƒ = 1 MHz		 805 1050 1620 2100 pF
COSS Output capacitance 412 536 783 1020 pF
CRSS Reverse transfer capacitance 15 20 28 36 pF
RG Series gate resistance 1.2 2.4 0.6 1.2 Ω
Qg Gate charge total (4.5 V) VDS = 15 V,
IDS = 15 A		 5.7 7.4 10.7 14.0 nC
Qgd Gate charge – gate-to-drain 1.1 1.7 nC
Qgs Gate charge – gate-to-source 2.1 2.8 nC
Qg(th) Gate charge at Vth 1.1 1.4 nC
QOSS Output charge VDS = 15 V, VGS = 0 V 11 19 nC
td(on) Turnon delay time VDS = 15 V, VGS = 4.5 V,
IDS = 15 A, RG = 2 Ω		 8 8 ns
tr Rise time 29 27 ns
td(off) Turnoff delay time 13 17 ns
tf Fall time 4 5 ns
DIODE CHARACTERISTICS
VSD Diode forward voltage IDS = 15 A, VGS = 0 V 0.8 1.0 0.8 1.0 V
Qrr Reverse recovery charge VDS = 15 V, IF = 15 A,
di/dt = 300 A/µs		 24 40 nC
trr Reverse recovery time 17 22 ns

CSD87335Q3D RthjaMAX.png
Max RθJA = 73°C/W when mounted on 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu.

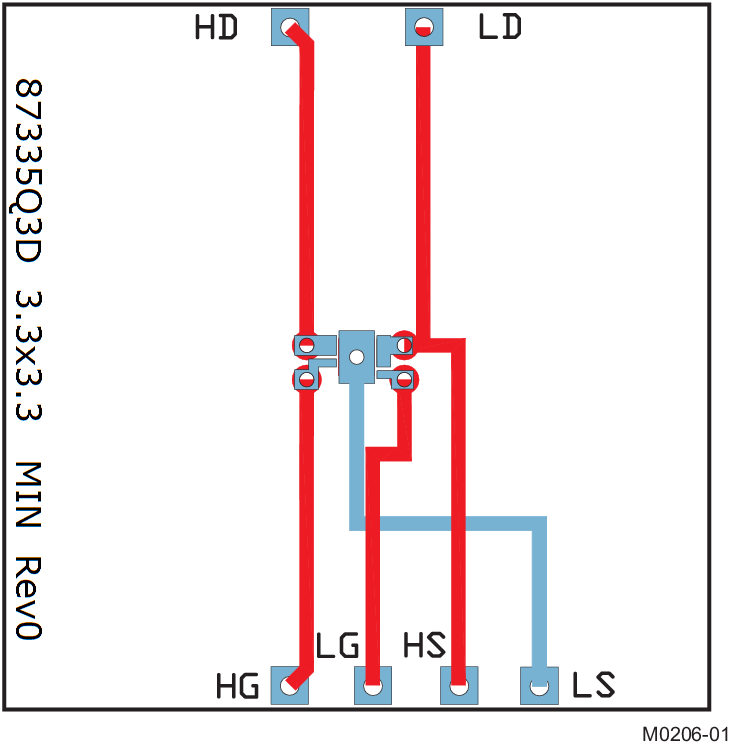

CSD87335Q3D RthjaMIN.png
Max RθJA = 135°C/W when mounted on minimum pad area of 2-oz. (0.071-mm) thick Cu.
