5.6 Typical Power Block Device Characteristics

Test conditions: VIN = 12 V, VDD = 5 V, ƒSW = 500 kHz, VOUT = 1.3 V, LOUT = 950 nH, IOUT = 25 A, TJ = 125°C, unless stated otherwise.
CSD87335Q3D D001_SLPS574.gif
Figure 1. Power Loss vs Output Current
CSD87335Q3D D004_SLPS574.gif
Figure 3. Safe Operating Area – PCB Horizontal Mount(1)1
CSD87335Q3D D002_SLPS574.gif
Figure 2. Power Loss vs Temperature
CSD87335Q3D D005_SLPS574.gif
Figure 4. Typical Safe Operating Area(1)1
1. The Typical Power Block System Characteristic curves are based on measurements made on a PCB design with dimensions of 4 in (W) × 3.5 in (L) × 0.062 in (H) and 6 copper layers of 1-oz copper thickness. See Applications and Implementation section for detailed explanation.
CSD87335Q3D D006_SLPS574.gif
Figure 5. Normalized Power Loss vs Switching Frequency
CSD87335Q3D D008_SLPS574.gif
Figure 7. Normalized Power Loss vs Output Voltage
CSD87335Q3D D007_SLPS574.gif
Figure 6. Normalized Power Loss vs Input Voltage
CSD87335Q3D D009_SLPS574.gif

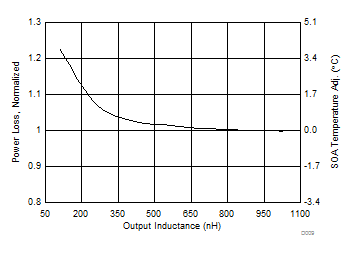

Figure 8. Normalized Power Loss vs Output Inductance
