4.6 Typical Power Block Device Characteristics

The typical power block system characteristic curves (Figure 4-1 through Figure 4-6) are based on measurements made on a PCB design with dimensions of 4in (W) × 3.5in (L) × 0.062in (H) and 6 copper layers of 2oz copper thickness. See Section 5 section for detailed explanation. TJ = 125°C, unless stated otherwise.

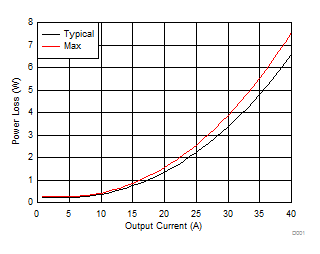

CSD88599Q5DC Power Loss vs Output Current
VIN = 36V VDD = 10V D.C. = 50%
ƒSW = 20kHz L = 480µH
Figure 4-1 Power Loss vs Output Current

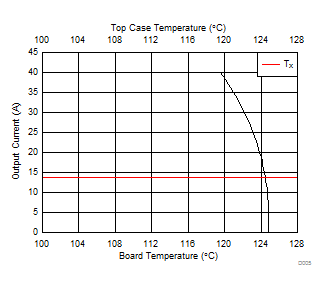

CSD88599Q5DC Typical Safe Operating Area
VIN = 36V VDD = 10V D.C. = 50%
ƒSW = 20kHz L = 480µH
Figure 4-3 Typical Safe Operating Area
CSD88599Q5DC Normalized Power Loss vs Input Voltage
D.C. = 50% VDD = 10V IOUT = 40A
ƒSW = 20kHz L = 480µH
Figure 4-5 Normalized Power Loss vs Input Voltage
CSD88599Q5DC Power Loss vs Temperature
VIN = 36V VDD = 10V D.C. = 50%
ƒSW = 20kHz L = 480µH IOUT = 40 A
Figure 4-2 Power Loss vs Temperature

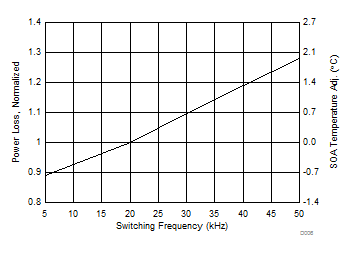

CSD88599Q5DC Normalized Power Loss vs Switching Frequency
VIN = 36V VDD = 10V IOUT = 40A
L = 480µH D.C. = 50%
Figure 4-4 Normalized Power Loss vs Switching Frequency
CSD88599Q5DC Normalized Power Loss vs Duty Cycle
VIN = 36V VDD = 10V
ƒSW = 20kHz L = 480µH
Figure 4-6 Normalized Power Loss vs Duty Cycle
