3 Description

The CSD88599Q5DC 60V power block is an optimized design for high-current motor control applications, such as handheld, cordless garden and power tools. This device utilizes TI's stacked die technology in order to minimize parasitic inductances while offering a complete half bridge in a space saving thermally enhanced DualCool™ 5mm × 6mm package. With an exposed metal top, this power block device allows for simple heat sink application to draw heat out through the top of the package and away from the PCB, for superior thermal performance at the higher currents demanded by many motor control applications.

CSD88599Q5DC Bottom View Bottom View
CSD88599Q5DC Top View Top View
Device Information
DEVICE QTY MEDIA PACKAGE SHIP
CSD88599Q5DC 2500 13 Inch Reel SON
5.00mm × 6.00mm
Plastic Package		 Tape and Reel
CSD88599Q5DCT 250 7 Inch Reel

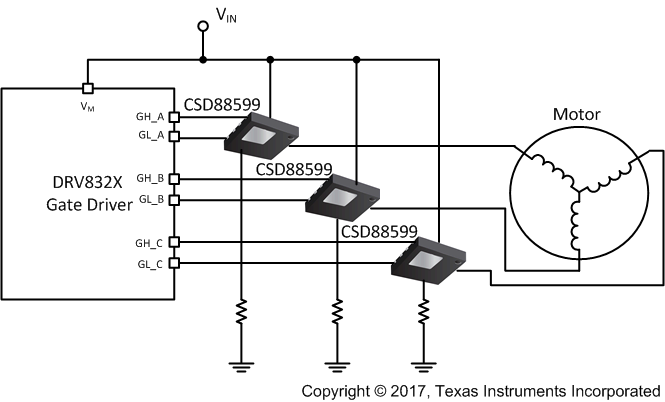

CSD88599Q5DC Typical CircuitTypical Circuit

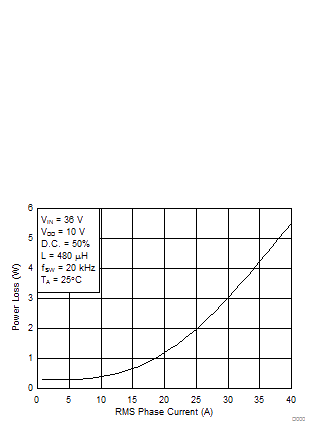

CSD88599Q5DC Power Loss vs Output CurrentPower Loss vs Output Current
