4.7 Typical Power Block MOSFET Characteristics

TJ = 25°C, unless stated otherwise.

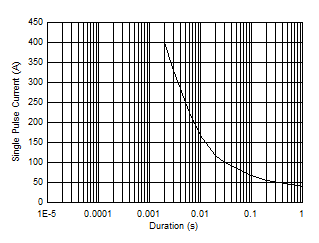

CSD88599Q5DC Single Pulse Current vs Pulse Duration
Max RθJA = 125°C/W
Figure 4-7 Single Pulse Current vs Pulse Duration

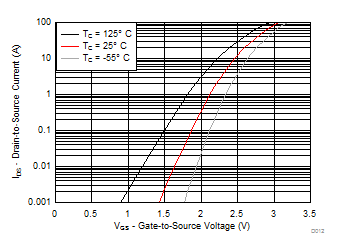

CSD88599Q5DC MOSFET Transfer Characteristics
VDS = 5V
Figure 4-9 MOSFET Transfer Characteristics
CSD88599Q5DC MOSFET Capacitance
Figure 4-11 MOSFET Capacitance

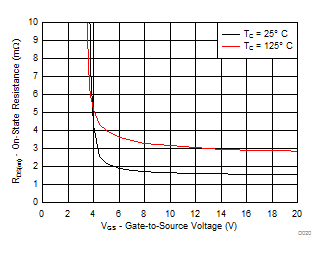

CSD88599Q5DC MOSFET RDS(on) vs VGS
ID = 30A
Figure 4-13 MOSFET RDS(on) vs VGS
CSD88599Q5DC MOSFET Body Diode Forward Voltage
Figure 4-15 MOSFET Body Diode Forward Voltage
CSD88599Q5DC MOSFET Saturation Characteristics
Figure 4-8 MOSFET Saturation Characteristics
CSD88599Q5DC MOSFET Gate Charge
ID = 30AVDS = 30V
Figure 4-10 MOSFET Gate Charge

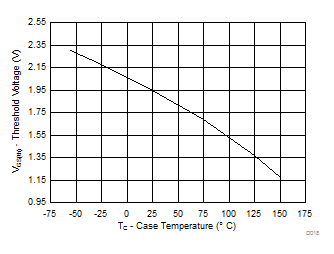

CSD88599Q5DC Threshold Voltage vs Temperature
ID = 250µA
Figure 4-12 Threshold Voltage vs Temperature
CSD88599Q5DC MOSFET Normalized RDS(on) vs Temperature
ID = 30AVDS = 30V
Figure 4-14 MOSFET Normalized RDS(on) vs Temperature

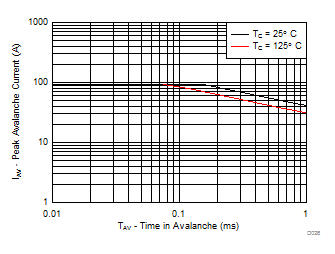

CSD88599Q5DC MOSFET Single Pulse Unclamped Inductive Switching
Figure 4-16 MOSFET Single Pulse Unclamped Inductive Switching
