6.2 Tape and Reel Information

Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
CSD96415RWJ VQFN-CLIP RWJ 41 2500 330 12.4 5.30 6.30 1.20 8.00 12.00

Q1
CSD96415RWJT VQFN-CLIP RWJ 41 250 180 12.4 5.30 6.30 1.20 8.00 12.00 Q1

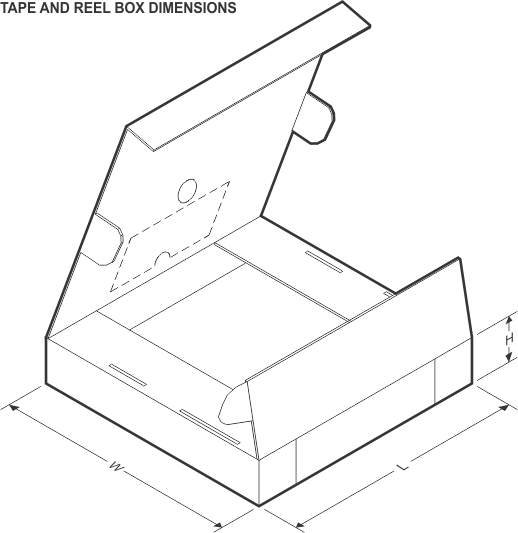

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
CSD96415RWJ VQFN-CLIP RWJ 41 2500 367 367 38
CSD96415RWJT VQFN-CLIP RWJ 41 250 213 191 35
