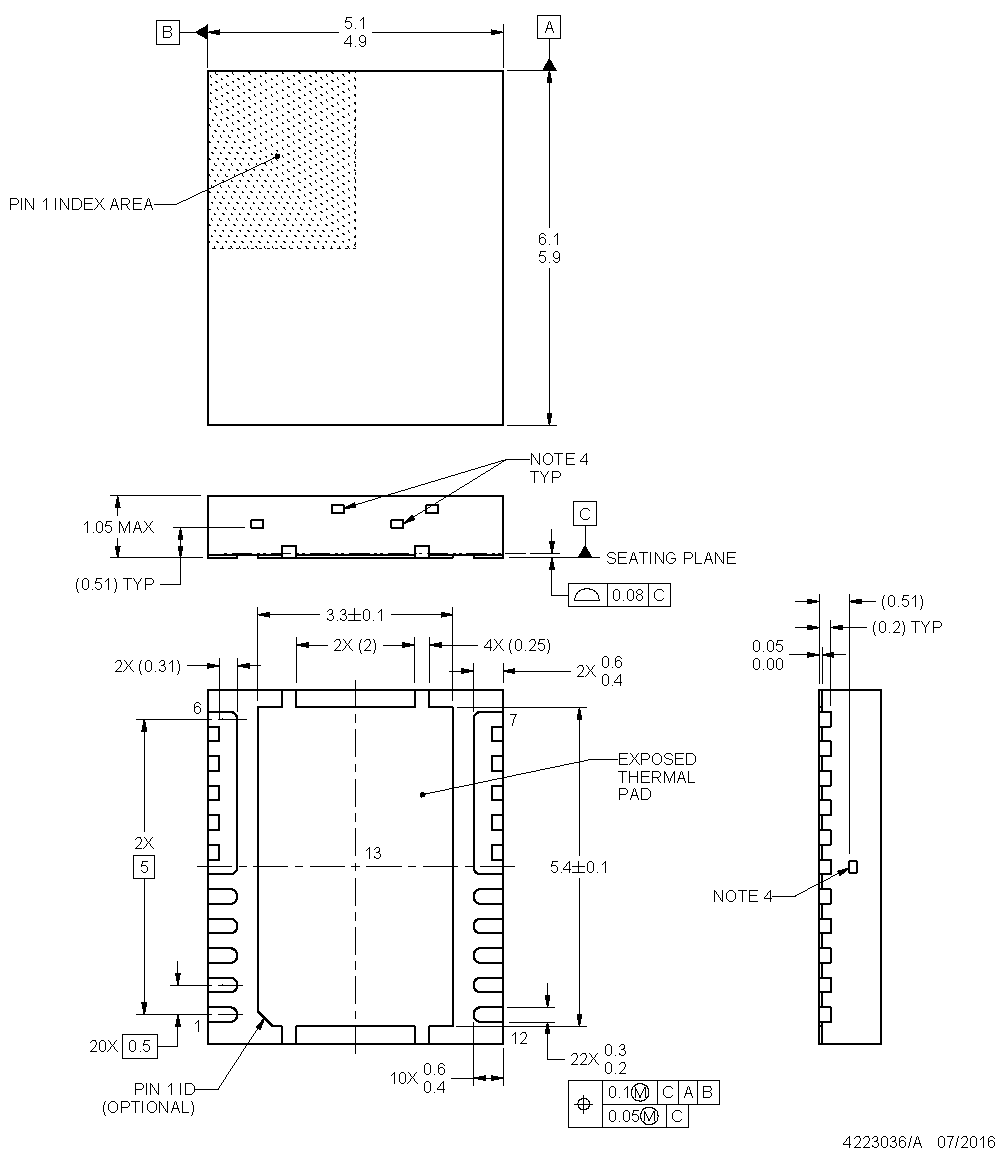

6.1 Mechanical Drawing

CSD96497Q5MC Mech.png
  1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing per ASME Y14.5M.
  2. This drawing is subject to change without notice.
  3. The package thermal pads must be soldered to the printed circuit board for thermal and mechanical performance.
  4. Exposed tie bar features may vary.
