7.3.16.2 Interpolation Filters

The digital upconverter first increases the sample rate of the IQ signal from the input sample rate to the final DAC sample rate through a series of interpolation filters. Different sets of filters are used to achieve different rates, as shown in Table 7-34. The interpolation rate is selected by field INTERP in register MULTIDUC_CFG1 (7.5.13).

Table 7-34 FIR filters Used for Different Interpolation Rates
FILTERS USED
Interpolation RateFIR0 (2x)FIR1 (2x)LPFIR0_5XFIR2 (2x)LPFIR0_3XFIR3 (2x)LPFIR1_3X
6xx
8xxx
10xx
12xxx
16xxxx
18xxx
20xxx
24xxxx

The FIR filter coefficients are shown in Table 7-35 The FIR filters are design with a passband BW of 0.4 x fINPUT, a stopband attenuation of 90 dBc and ripple of < 0.001 dB. The composite frequency response for each interpolation factor are shown in Figure 7-14 to Figure 7-21.

A.
Figure 7-14 Composite Magnitude Response for 6x Interpolation
A.
Figure 7-16 Composite Magnitude Response for 10x Interpolation
A.
Figure 7-15 Composite Magnitude Response for 8x Interpolation
A.
Figure 7-17 Composite Magnitude Response for 12x Interpolation
A.

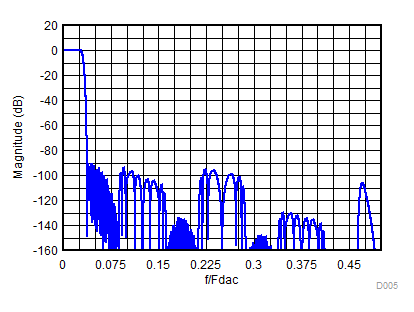

Figure 7-18 Composite Magnitude Response for 16x Interpolation
A.

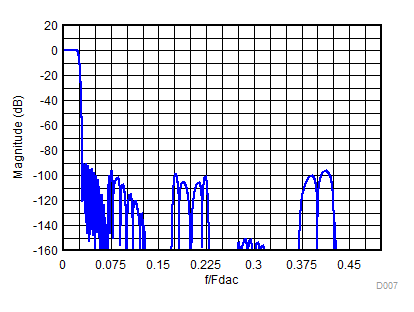

Figure 7-20 Composite Magnitude Response for 20x Interpolation
A.
Figure 7-19 Composite Magnitude Response for 18x Interpolation
A.

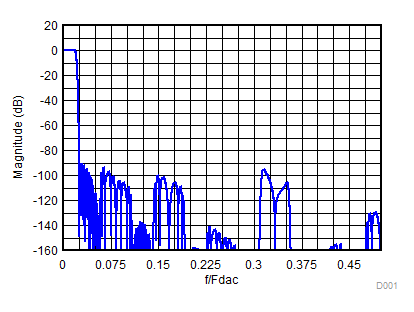

Figure 7-21 Composite Magnitude Response for 24x Interpolation
Table 7-35 FIR Filter Coefficients
tapFIR0FIR1LPFIR0_5XFIR2LPFIR0_3XFIR3LPFIR1_3XINVSINC
16-12-629-143251
200-220-61088-4
3-1984-51-214-125-252213
400-890-950-576-50
547-336-1171209181150-1764592
600-1062048681256-2263-50
7-1001006-18120997215049113
800171034708139-4
9192-2691449-214-1475-25186251
10007450-3519026365
11-3421014193029-3528326365
1201638484170718625
135721014133893378139
1400-61819445491
15-914-2691-189226299-2263
1600-314726299-1764
1714091006-387219445-576
1800-3500933722
19-2119-336-156470788
20002121-352825
213152847336-3519
220013430-1475
23-4729-1219426347
24024231972
25742026904681
26026904181
27-1333424231-95
28019426-125
294152713430-61
30655367336-14
31415272121
320-1564
33-13334-3500
340-3872
357420-3147
360-1892
37-4729-618
380338
393152841
400930
41-2119745
420449
431409171
440-18
45-914-106
460-117
47572-89
480-51
49-342-22
500-6
51192
520
53-100
540
5547
560
57-19
580
596
