6.11 Typical Characteristics: VDD = 5.5 V (Reference = VDD) or VDD = 5 V (Internal Reference)

at TA = 25°C, 10-bit DAC, and DAC outputs unloaded (unless otherwise noted)

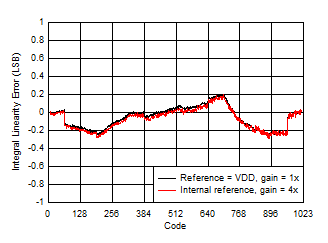

Figure 6-2 Integral Linearity Error vs Digital Input Code

Figure 6-4 Differential Linearity Error vs Digital Input Code

Figure 6-6 Total Unadjusted Error vs Digital Input Code
Reference = VDD
Figure 6-8 Zero Code Error vs Temperature

Figure 6-10 Gain Error vs Temperature

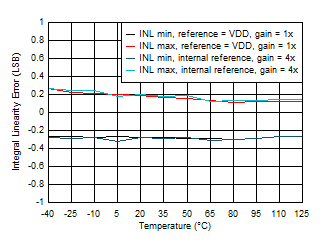

Figure 6-3 Integral Linearity Error vs Temperature

Figure 6-5 Differential Linearity Error vs Temperature

Figure 6-7 Total Unadjusted Error vs Temperature
Reference = VDD
Figure 6-9 Offset Error vs Temperature

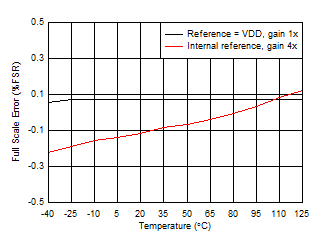

Figure 6-11 Full-Scale Error vs Temperature
