6.7 Timing Requirements

MIN NOM MAX UNIT
tr Rise time(1) 20% to 80% DCLK 2.5 ns
tf Fall time(1) 80% to 20% DCLK 2.5 ns
tr Rise time(2) 20% to 80% DATA(11:0), SCTRL, LOADB 2.5 ns
tf Fall time(2) 80% to 20% DATA(11:0), SCTRL, LOADB 2.5 ns
tc Cycle time(1) 50% to 50% DCLK 12.5 16.67 ns
tw Pulse duration(1) 50% to 50% DCLK 5 ns
tw Pulse duration low(1) 50% to 50% LOADB 7 ns
tw Pulse duration high(1) 50% to 50% DRC_STROBE 7 ns
tsu Setup time(1) DATA(11:0) before rising or falling edge of DCLK 1 ns
tsu Setup time(1) SCTRL before rising or falling edge of DCLK 1 ns
tsu Setup time(1) LOADB low before rising edge of DCLK 1 ns
tsu Setup time(2) SAC_BUS low before rising edge of DCLK 2 ns
tsu Setup time(2) DRC_BUS high before rising edge of DCLK 2 ns
tsu Setup time(1) DRC_STROBE high before rising edge of DCLK 2 ns
th Hold time(1) DATA(11:0) after rising or falling edge of DCLK 1 ns
th Hold time(1) SCTRL after rising or falling edge of DCLK 1 ns
th Hold time(1) LOADB low after falling edge of DCLK 1 ns
th Hold time(2) SAC_BUS low after rising edge of DCLK 2 ns
th Hold time(2) DRC_BUS after rising edge of DCLK 2 ns
th Hold time(1) DRC_STROBE after rising edge of DCLK 2 ns
(1) Refer to Figure 6-2 and Figure 6-3.
(2) Refer to Figure 6-4 and Figure 6-5.

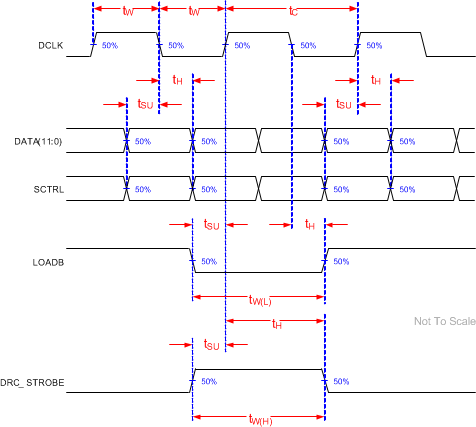

GUID-79B83EE3-8FE8-4997-AF6C-B2A83E1C3D29-low.gif Figure 6-2 Switching Parameters 1
GUID-F58F4E61-1C54-42FE-A8B4-5E5902094FC1-low.gif Figure 6-3 Switching Parameters 2
GUID-0E697B5C-D4A4-4CBA-8E36-120130B27982-low.gif Figure 6-4 Rise and Fall Timing Parameters 1
GUID-3E8C28FE-49CF-43D1-AC14-F240EB79DA8D-low.gif Figure 6-5 Rise and Fall Timing Parameters 2
GUID-CFF5E665-7327-43B2-900E-9224B28E7BD0-low.gif Figure 6-6 Test Load Circuit

See Section 7.3.4 for more information.
