11.1.3 Device Markings

The device marking includes the legible character string GHJJJJK DLP301SFQS. GHJJJJK is the lot trace code. DLP301SFQS is the orderable device number.

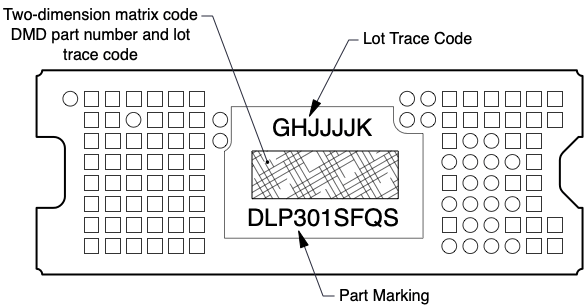

GUID-20210309-CA0I-2LDJ-S69G-9VV6PKJVJXXL-low.gifFigure 11-2 DMD Marking
