6.10 Physical Characteristics of the Micromirror Array

PARAMETERVALUEUNIT
NNumber of active columnsSee Figure 6-7684micromirrors
MNumber of active rowsSee Figure 6-7608micromirrors
εMicromirror (pixel) pitch – diagonalSee Figure 6-87.6µm
PMicromirror (pixel) pitch – horizontal and verticalSee Figure 6-810.8µm
Micromirror active array widthP × M + P / 2; see Figure 6-76.5718mm
Micromirror active array height(P × N) / 2 + P / 2; see Figure 6-73.699mm
Micromirror active borderPond of micromirror (POM)(1)10micromirrors/side
(1) The structure and qualities of the border around the active array includes a band of partially functional micromirrors called the POM. These micromirrors are structurally and/or electrically prevented from tilting toward the bright or ON state, but still require an electrical bias to tilt toward OFF.

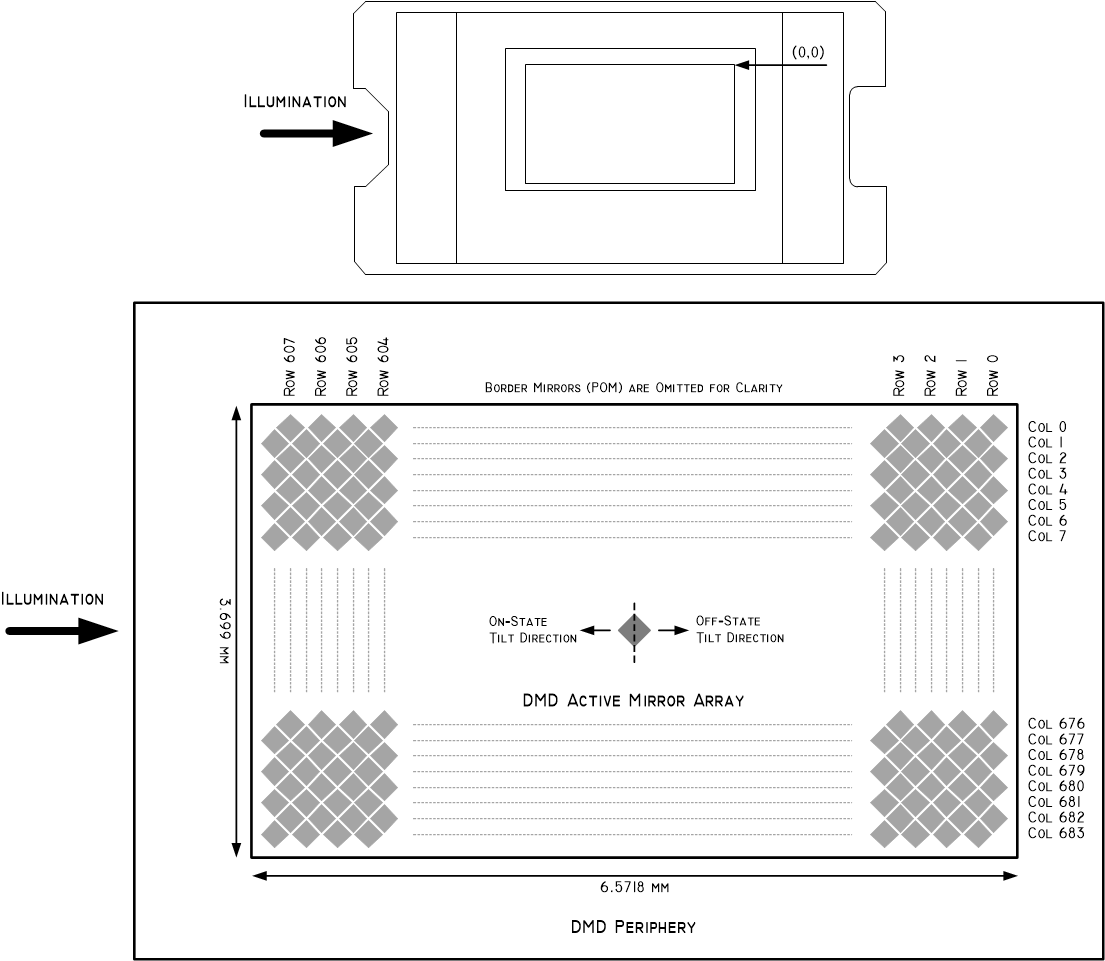

GUID-D2F29AB6-16E1-496C-9216-DE8B7DB60469-low.gifFigure 6-7 Micromirror Array Physical Characteristics
GUID-2CE5C8D8-6C9E-4CE8-AE73-6C211DF250A9-low.gifFigure 6-8 Mirror (Pixel) Pitch
