7.6 SPI Timing Parameters

SPI_VIN = 3.6 V, TA = 0 to 70°C, CL = 10 pF (unless otherwise noted).
PARAMETER MIN MAX UNIT
fCLK Serial clock frequency 0 40 MHz
tCLKL Pulse width low, SPI_CLK, 50% level 10 ns
tCLKH Pulse width high, SPI_CLK, 50% level 10 ns
tt Transition time, 20% to 80% level, all signals 0.2 4 ns
tCSCR SPI_SS_Z falling to SPI_CLK rising, 50% level 8 ns
tCFCS SPI_CLK falling to SPI_CSZ rising, 50% level 1 ns
tCDS SPI_MOSI data setup time, 50% level 7 ns
tCDH SPI_MOSI data hold time, 50% level 6 ns
tiS SPI_MISO data setup time, 50% level 10 ns
tiH SPI_MISO data hold time, 50% level 0 ns
tCFDO SPI_CLK falling to SPI_MISO data valid, 50% level 13 ns
tCSZ SPI_CSZ rising to SPI_MISO HiZ 6 ns

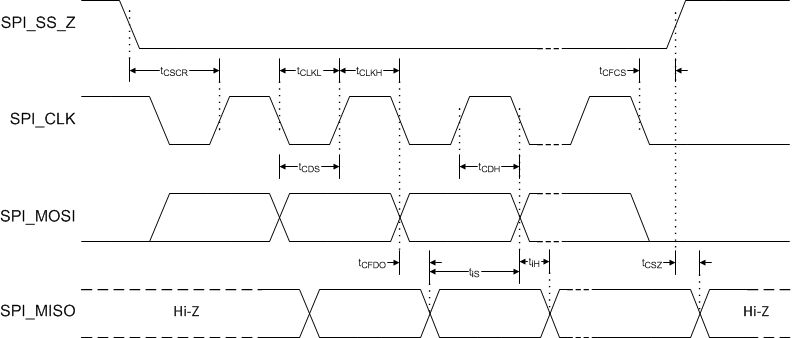

GUID-BFCE928D-8CAD-4819-AF5C-A7613E69320C-low.gif Figure 7-1 SPI Timing Diagram
