7.3.5.4 Buck Converter Efficiency

Figure 7-16 shows an overview of the efficiency of the buck converter for an input voltage of 12 V. The efficiency is shown for several output voltage levels where the load current is swept.

Figure 7-17 depicts the buck converter efficiency versus input voltage (VIN) for a load current (IOUT) of 1 A for various output voltage levels (VOUT).

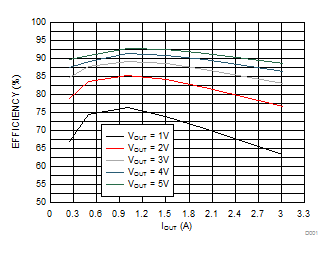

GUID-6F17185F-882C-4A20-BE82-02D648FBF428-low.gifFigure 7-16 Buck Converter Efficiency vs IOUT (VIN = 12 V)

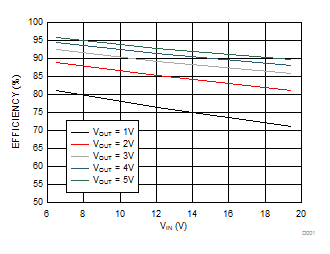

GUID-86EC762D-0450-4E94-8817-B4FFB8EB3855-low.gifFigure 7-17 Buck Converter Efficiency vs VIN (IOUT = 1 A) Schematic
