Device Markings

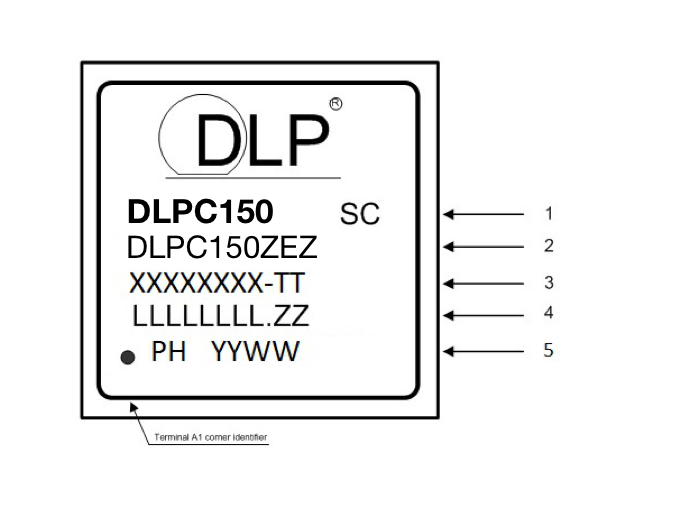

DLPC150 Dev_Marking.png

Marking Definitions:

Line 1: DLP Device Name: DLPC150
SC: Solder ball composition
   e1: Indicates lead-free solder balls consisting of SnAgCu
   G8: Indicates lead-free solder balls consisting of tin-silver-copper (SnAgCu) with silver content
   less than or equal to 1.5% and that the mold compound meets TI's definition of green.
Line 2: TI Part Number
Line 3: XXXXXXXX-TT manufacturer part number
Line 4: LLLLLLLL.ZZ Foundry lot code for semiconductor wafers and lead-free solder ball marking
Line 5: PH YYWW: Package assembly information
