6.11 Parallel Flash Interface Timing Requirements

PARAMETER MIN MAX UNIT
tAVAV Read cycle time 110 ns
tAVQV Address to output valid 110 ns
tELQV CE low to output valid 110 ns
tGLQV OE low to output valid 25 ns
tPHQV RST high to output valid 150 ns
tGLTV OE low to WAIT valid 17 ns
tPHWL RST high recovery to WE low 150 ns
tELWL CE setup to WE low 0 ns
tWLWH WE write pulse width low 50 ns
tDVWH Data setup to WE high 50 ns
tAVWH Address setup to WE high 50 ns
tWHEH CE hold from WE high 0 ns
tPWDHX Data hold from WE high 0 ns
tWHAX Address hold from WE high 0 ns
DLPC200 parallel_read_lps014.gifFigure 6. Parallel Flash Read Timing

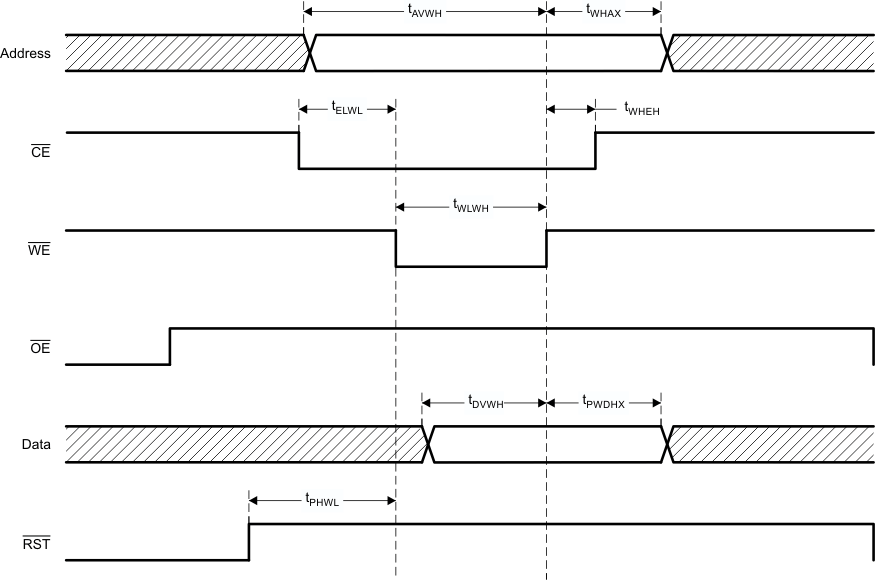

DLPC200 parallel_write_lps014.gifFigure 7. Parallel Flash Write Timing
