6.10 System Oscillators Timing Requirements

MINNOMMAXUNIT
fclkClock frequency, MOSC (primary oscillator clock)(1)23.99824.00024.002MHz
tcCycle time, MOSC (clock period)(1)See Figure 6-541.66341.66741.670ns
tw(H)Pulse duration as percent of tc(2), MOSC, high50% to 50% reference points (signal)40%50%
tw(L)Pulse duration as percent of tc(2), MOSC, low50% to 50% reference points (signal)40%50%
ttTransition time(2), MOSC20% to 80% reference points (rising signal)
80% to 20% reference points (falling signal)		10ns
tjpLong-term, peak-to-peak, period jitter(2), MOSC
(that is the deviation in period from ideal period due solely to high frequency jitter)		2%
(1) The frequency accuracy for MOSC is ±200 PPM. This requirement includes any impact to accuracy due to aging, temperature, and trim sensitivity. The MOSC input cannot support spread spectrum clock spreading.
(2) Applies only when driven by an external digital oscillator.

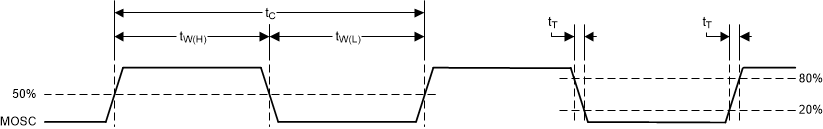

GUID-5A615C01-20E7-4364-A77C-DECE386658F5-low.gifFigure 6-5 System Oscillators
