6.9 DMD Low-Speed Interface Electrical Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETER(3)TEST CONDITIONSMINTYPMAXUNIT
VOH(DC)DC output high voltage for DMD_LS_WDATA and DMD_LS_CLK0.7 × VCC18V
VOL(DC)DC output low voltage for DMD_LS_WDATA and DMD_LS_CLK0.3 × VCC18V
VOH(AC)(1)AC output high voltage for DMD_LS_WDATA and DMD_LS_CLK0.8 × VCC18VCC18 + 0.5V
VOL(AC)(2)AC output low voltage for DMD_LS_WDATA and DMD_LS_CLK-0.50.2 × VCC18V
Slew rateDMD_LS_WDATA and DMD_LS_CLKVOL(DC) to VOH(AC) for rising edge and VOH(DC) to VOL(AC) for rising edge1.03.0V/ns
DMD_DEN_ARSTZVOL(AC) to VOH(AC) for rising edge0.25
DMD_LS_RDATA0.5
(1) VOH(AC) maximum applies to overshoot. When the DMD_LS_WDATA and DMD_LS_CLK lines include a proper 43-Ω series termination resistor, the DMD operates within the LPSDR input AC specifications.
(2) VOL(AC) minimum applies to undershoot. When the DMD_LS_WDATA and DMD_LS_CLK lines include a proper 43-Ω series termination resistor, the DMD operates within the LPSDR input AC specifications.
(3) See Figure 6-3 for DMD_LS_CLK, and DMD_LS_WDATA rise and fall times. See Figure 6-4 for DMD_DEN_ARSTZ rise and fall times.

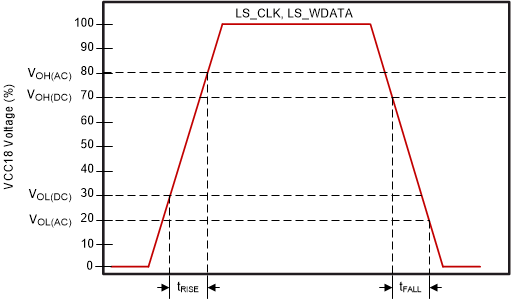

GUID-CB84375F-1D97-4F54-9387-009F07F888E0-low.gifFigure 6-3 LS_CLK and LS_WDATA Slew Rate

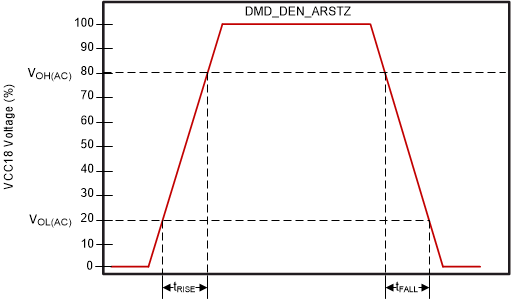

GUID-0B5BD179-CD36-4ED1-977C-27FB5BCB06C7-low.gifFigure 6-4 DMD_DEN_ARSTZ Slew Rate
