8.2.3 Application Curve

As the LED currents that are driven time-sequentially through the red, green, and blue LEDs are increased, the brightness of the projector increases. This increase is somewhat non-linear, and the curve for typical white screen lumens changes with LED currents is shown in Figure 8-2 when using the DLPA3000. For the LED currents shown, it is assumed that the same current amplitude is applied to the red, green, and blue LEDs.

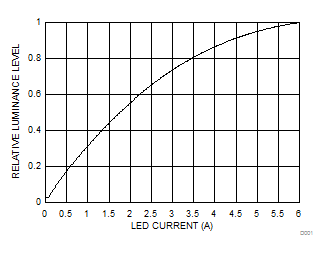

GUID-99D515FE-BC10-43FC-88D3-BB3F6111AAA3-low.gifFigure 8-2 Typical Luminance vs Current
