6.14 Flash Interface Timing Requirements

The DLPC34xx flash memory interface consists of a SPI flash serial interface. The DLPC34xx can support 1- to 128-Mb flash memories.(2)(3)(4)
MINMAXUNIT
fclockSPI_CLK frequencySee (1)1.436.0MHz
tp_clkperSPI_CLK period50% reference points27.8704ns
tp_whSPI_CLK pulse duration high50% reference points352ns
tp_wlSPI_CLK pulse duration low50% reference points352ns
ttTransition time – all signals20% to 80% reference points (rising signal)
80% to 20% reference points (falling signal)		0.23.0ns
tp_suSetup time – SPI_DIN valid before SPI_CLK falling edge50% reference points10.0ns
tp_hHold time – SPI_DIN valid after SPI_CLK falling edge50% reference points0.0ns
tp_clqvSPI_CLK clock falling edge to output valid time – SPI_DOUT and SPI_CSZ50% reference points1.0ns
tp_clqxSPI_CLK clock falling edge output hold time – SPI_DOUT and SPI_CSZ50% reference points–3.03.0ns
(1) This range include the ±200 ppm of the external oscillator (but no jitter).
(2) Standard SPI protocol is to transmit data on the falling edge of SPI_CLK and capture data on the rising edge. The DLPC34xx does transmit data on the falling edge, but it also captures data on the falling edge rather than the rising edge. This feature provides support for SPI devices with long clock-to-Q timing. DLPC34xx hold capture timing has been set to facilitate reliable operation with standard external SPI protocol devices.
(3) With the above output timing, DLPC34xx provides the external SPI device 8.2-ns input set-up and 8.2-ns input hold, relative to the rising edge of SPI_CLK.
(4) For additional requirements of the external flash device view Section 7.3.4.1.

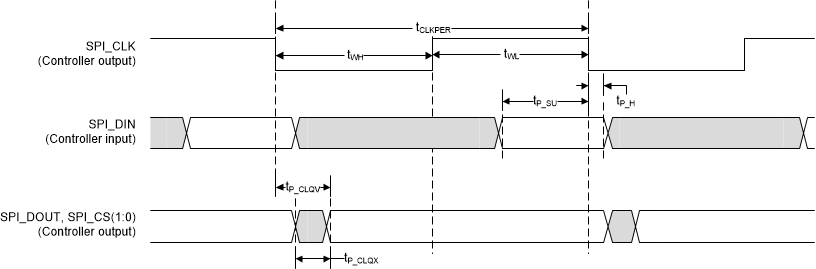

GUID-43BAC544-FE77-429D-A810-E18E51231214-low.gifFigure 6-9 Flash Interface Timing
