6.8 DMD Sub-LVDS Interface Electrical Characteristics

over operating free-air temperature range (unless otherwise noted)
PARAMETERTEST CONDITIONSMINTYPMAXUNIT
VCMCommon mode voltage0.80.91.0V
VCM (Δpp)(1)VCM change peak-to-peak (during switching)75mV
VCM (Δss)(1)VCM change steady state–1010mV
|VOD|(2)Differential output voltage magnitude170250350mV
VOD (Δ)VOD change (between logic states)–1010mV
VOHSingle-ended output voltage high0.8251.0251.175V
VOLSingle-ended output voltage low0.6250.7750.975V
TxtermInternal differential termination80100120Ω
Txload100-Ω differential PCB trace
(50-Ω transmission lines)		0.56inches
(1) See Figure 6-1
(2) VOD is the differential voltage measured across a 100-Ω termination resistance connected directly between the transmitter differential pins. VOD = VP - VN, where P and N are the differential output pins. |VOD| is the magnitude of the peak-to-peak voltage swing across the P and N output pins (see Figure 6-2). VCM cancels out between signals when measured differentially, thus the reason VOD swings relative to zero.

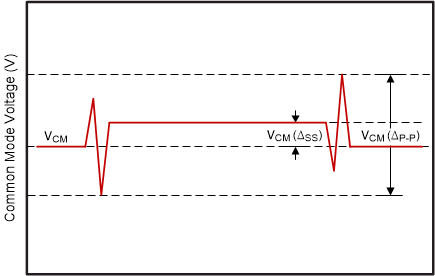

GUID-8C2137B8-01FC-46A3-BAA2-65613815DD41-low.gifFigure 6-1 Common Mode Voltage
VCM is removed when the signals are viewed differentially

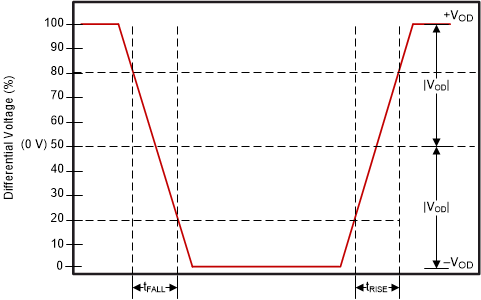

Figure 6-2 Differential Output Signal
