5.16 V-by-One Interface General Timing Requirements

PARAMETER(1) MIN MAX UNIT
fclockSource clock frequency40 (1 lane)
20 (1 lane with pixel repeat) (2)		600 (8 lanes)MHz
flink-ckLink clock frequency per lane (3)8 lanes
4 lanes
2 lanes
1 lane		43
43
43
43 (21.5 with pixel repeat)		75
85
85
85		MHz
flinkLink transfer rate (3)3-byte mode
4-byte mode
5-byte mode		2
2
2.15		2.55
3.0
3.0		Gbps
tRBITUnit interval3-byte mode
4-byte mode
5-byte mode		392
294
294		500
500
500		ps
ps
ps
tA Jitter margin 0.25 UI
tB Rise / fall time 0.05 UI
tEYE Differential data eye 0.5 UI
tskew_intraAllowable intra-pair skew0.3UI
tskew_interAllowable inter-pair skew5UI
foskew_interAllowable inter-pair frequency offset–300300ppm
TjTotal jitter—0.5UI
RjRandom jitter1012 UI—0.2UI
Dj_ISIDeterministic jitter (ISI)—0.2UI
SjSinusoidal jitter—0.1UI
(1) V-by-One high-speed technology supports 1-, 2-, 4-, or 8-lane operation, in addition to 3-byte, 4-byte, and 5-byte transfer modes.
(2) Pixel repeat is a method used to support slower clock rate sources, whereby, the source come at twice the original clock rate, with each data pixel being repeated once, and blanking being doubled as well. This method must operate external to DLPC7530. Once received, the DLPC7530 discards each duplicate data pixel and blanking clock. Pixel repeat is supported only during a 1-lane operation.
(3) For V-by-One high-speed technology, both link clock rate and link transfer rate limits must be met for any source.

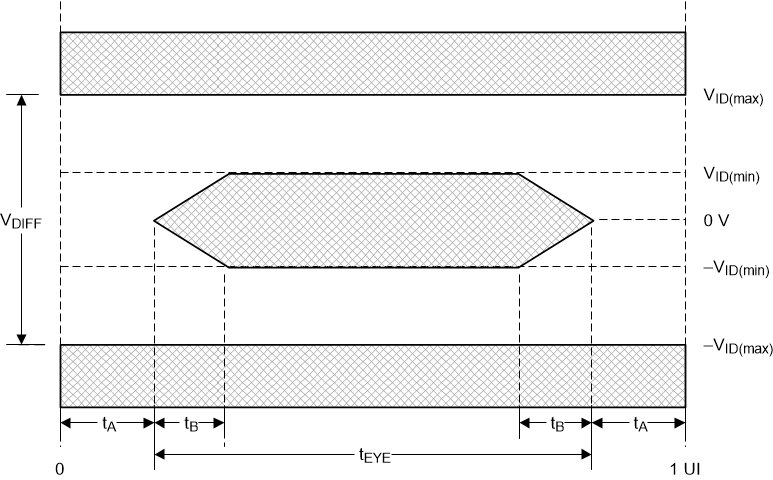

DLPC7530 V-by-One Timing Figure 5-13 V-by-One Timing
