Structured Light Application

For structured light applications, the DLPC900 can be commanded to enter the following high speed sequential pattern modes.

  1. Video Pattern Mode
  2. Pre-Stored Pattern Mode
  3. Pattern On-The-Fly Mode
In each mode a specific set of patterns are selected with a maximum of 24 bits per pixel. The bit-depth of the patterns are then allocated into the corresponding time slots. Furthermore, an output trigger signal is also synchronized with these time slots to indicate when the image is displayed.

These pattern modes provide the capability to display a set of patterns and signal a camera to capture these patterns overlaid on an object. The DLPC900 controller is capable of preloading up to 480 1-bit binary patterns or 1024 1-bit binary patterns for the DLP5500 into internal memory from the external flash memory or from the USB or I2C interfaces. These preloaded binary patterns are then streamed to the DMD at high speed.

Note:

When using Pre-Stored Pattern Mode, the number of patterns that can be stored in External Flash depends on the size of the external flash and level of compression achievable. The 1-bit pre-stored patterns for each DMD describe the controller memory, not flash memory.

Table 6-3 Number of 1-Bit Pre-Stored Patterns for Each DMD
DMD NUMBER OF PATTERNS
DLP5500 1024
DLP500YX 800
DLP6500 400
DLP670S 400
DLP9000 480

The DLPC900 controller is capable of synchronizing a camera to the displayed patterns. In video pattern mode, the vertical sync is used as trigger input. In pre-stored pattern mode and pattern on-the-fly mode, an internal user configurable trigger or a TRIG_IN_1 pulse indicates to the DLPC900 controller to advance to the next pattern, while TRIG_IN_2 starts and stops the pattern sequence. In all pattern modes, TRIG_OUT_1 frames the exposure time of the pattern, while TRIG_OUT_2 indicates the start of the pattern sequence.

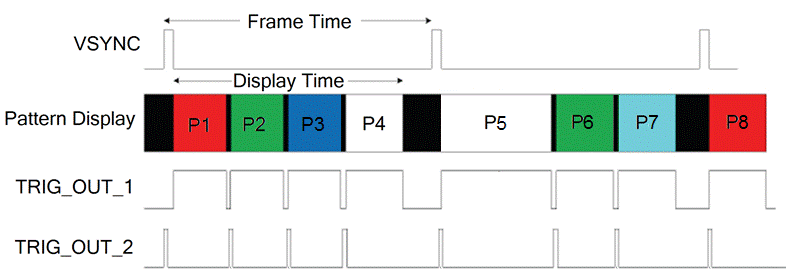

Figure 6-16 shows an example timing diagram of video pattern mode. The VSYNC starts the pattern sequence display. The pattern sequence consists of a series of four patterns followed by a series of three patterns and then repeats. The first pattern sequence consists of P1, P2, P3, and P4. The second pattern sequence consists of P5, P6, and P7. TRIG_OUT_1 frames each pattern exposed, while TRIG_OUT_2 indicates the start of each pattern in the sequence. If the pattern sequence is configured without dark time between patterns, then the TRIG_OUT_1 output would be high for the entire pattern sequence.

DLPC900 Video
                    Pattern Mode Timing Diagram Figure 6-16 Video Pattern Mode Timing Diagram

Figure 6-17 shows an example of a pre-stored pattern mode timing diagram. Pattern sequences of four are displayed. TRIG_OUT_1 frames each pattern exposed, while TRIG_OUT_2 indicates the start of each pattern in the sequence. If the pattern sequence is configured without dark time between patterns, then the TRIG_OUT_1 output would be high for the entire pattern sequence.

DLPC900 Pre-Stored Pattern Mode Timing Diagram Figure 6-17 Pre-Stored Pattern Mode Timing Diagram

Another example of a pre-stored pattern mode timing diagram is shown in Figure 6-18, where pattern sequences of three are displayed. TRIG_OUT_1 frames each pattern displayed, while TRIG_OUT_2 indicates the start of each pattern. TRIG_IN_2 serves as a start and stop signal. When high, the pattern sequence starts or continues. Note, in the middle of displaying the P4 pattern, TRIG_IN_2 is low, so the sequence stops displaying P4. When TRIG_IN_2 is raised, the pattern sequence continues where it stopped by re-displaying P4.

DLPC900 Pre-Stored Pattern Mode Timing Diagram for 3-Patterns Figure 6-18 Pre-Stored Pattern Mode Timing Diagram for 3-Patterns

Table 6-4 shows the allowed pattern combinations in relation to the bit depth of the pattern. If the pattern sequence is configured without dark time between patterns, then the TRIG_OUT_1 output would be high for the entire pattern sequence.

Table 6-4 Minimum Pattern Time in Any Pattern Mode
BIT DEPTH DLP5500 (µs) DLP6500 (µs) DLP9000 (µs) DLP500YX (µs) DLP670S (µs)
1 94 105 105 62 100
2 275 304 304 184 343
3 356 394 380 269 438
4 444 823 733 458 768
5 972 1215 1215 682 1299
6 1517 1487 1487 807 1488
7 1877 1998 1998 1083 2000
8 3753 4046 4046 2263 4046
10 NA NA NA 10363 NA
12 NA NA NA 41452 NA
14 NA NA NA 165807 NA
16 NA NA NA 663225 NA

For faster 8-bit pattern speeds, the illumination source can be modulated to shorten the smallest bits, and thus shorten the pattern speed. This method will introduce dark time into the pattern and affect the brightness, but it is capable of 8-bit pattern speeds up to four times faster than patterns without illumination modulation. More information on illumination modulation can be found in the DLP® LightCrafter™ Single DLPC900 Evaluation Module (EVM) User's Guide or DLP® LightCrafter™ Dual DLPC900 Evaluation Module (EVM) User's Guide. Examples of possible pattern speeds is shown in Table 6-5

Table 6-5 Faster Pattern Speed Examples
BIT DEPTH DLP5500 (µs) DLP6500 (µs) DLP9000 (µs) DLP500YX (µs) DLP670S (µs)
8 @ 500Hz 1950 1944 1944 1534 100
8 @ 750Hz 1283 1444 1444 343
8 @ 1000Hz(1) 916 969 944 1034 944
16 @ 4Hz NA NA NA 255943 NA
Minimum achievable exposure using smallest allowed Minimum LED Pulse Width
Table 6-6 shows the minimum pattern time for a 1-bit pattern in relation to the number of active DMD blocks.
Table 6-6 Minimum Exposures for Number of Active DMD Blocks
ACTIVE BLOCKS DLP5500 (µs) DLP6500 (µs) DLP9000 (µs) DLP670S (µs) DLP500YX (µs)
1 25 (1) 24 24 27 30
2 30 (1) 45 42 27 30
3 35 (1) 45 42 27 30
4 28 45 42 33 30
5 33 48 45 38 34
6 38 54 51 44 38
7 43 60 56 49 42
8 48 66 61 55 46
9 53 72 67 61 50
10 58 78 72 66 54
11 63 84 77 72 58
12 68 90 83 77 62
13 73 96 88 83 -
14 78 101 93 89
15 83 105 99 94
16 94 - 105 100
To accommodate the 20μs trigger pulse and 5.2μs block reset time, minimum exposure times for active blocks 1, 2, and 3 are calculated differently than the following active blocks.
