4.6.2 Reset Timing

PARAMETER DESCRIPTION NOTES(1) MIN TYP MAX UNIT
T2.2.1 Post RESET stabilization time prior to MDC preamble for register accesses MDIO is pulled high for 32-bit serial management initialization. 3 µs
T2.2.2 Hardware configuration latch-in time from the deassertion of RESET (either soft or hard) Hardware configuration pins are described in Section 3 and Table 3-8. 3 µs
T2.2.3 Hardware configuration pins transition to output drivers 50 ns
T2.2.4 RESET pulse width X1 clock must be stable for at min. of 1 µs during RESET pulse low time. 1 µs
(1) It is important to choose pullup and/or pulldown resistors for each of the hardware configuration pins that provide fast RC time constants in order to latch-in the proper value prior to the pin transitioning to an output driver.

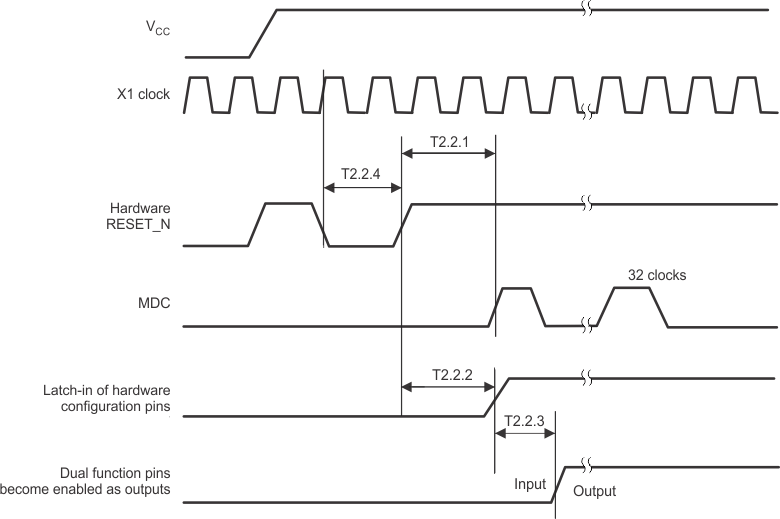

DP83848-EP reset_timing.gifFigure 4-3 Reset Timing
