6.8 Typical Characteristics

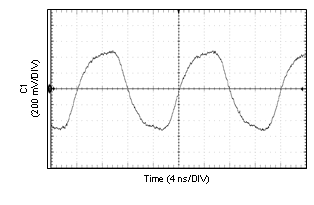

DP83869HM 1000Base-T Test Mode 2 Signal
mV/Divns/Div
200mV4ns
Figure 6-9 1000Base-T Test Mode 2 Signal
DP83869HM 10Base-Te Link Pulse
mV/Divns/Div
500mV80ns
Figure 6-11 10Base-Te Link Pulse

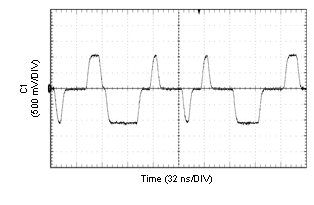

DP83869HM 100Base-TX Signal
mV/Divns/Div
500mV32ns
Figure 6-10 100Base-TX Signal
DP83869HM Auto-Negotiation FLP
mV/Divµs/Div
500mV400µs
Figure 6-12 Auto-Negotiation FLP
