7.7 Timing Diagrams

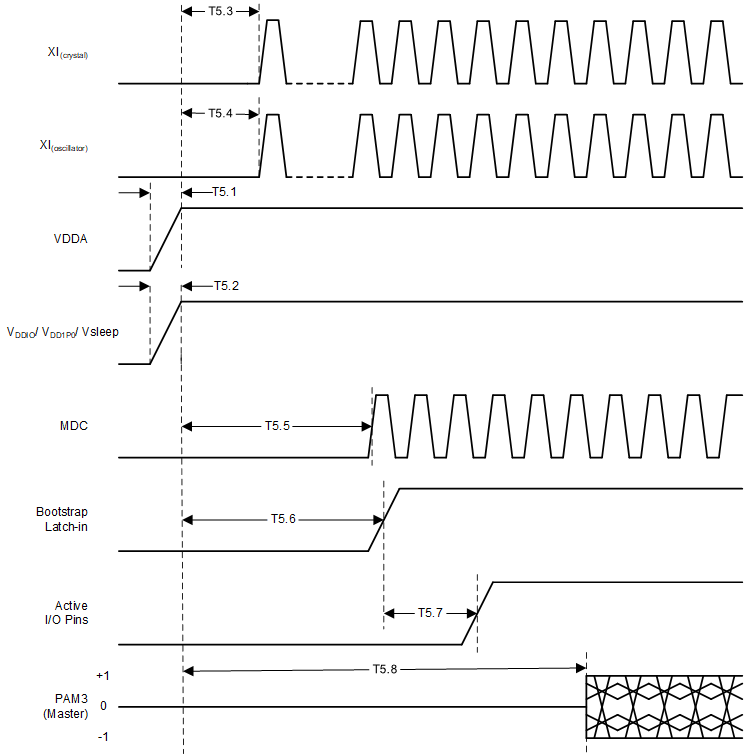

GUID-20200910-CA0I-TGPM-CJGZ-9PC5CQ8BNDZL-low.gif Figure 7-1 Power Up Timing

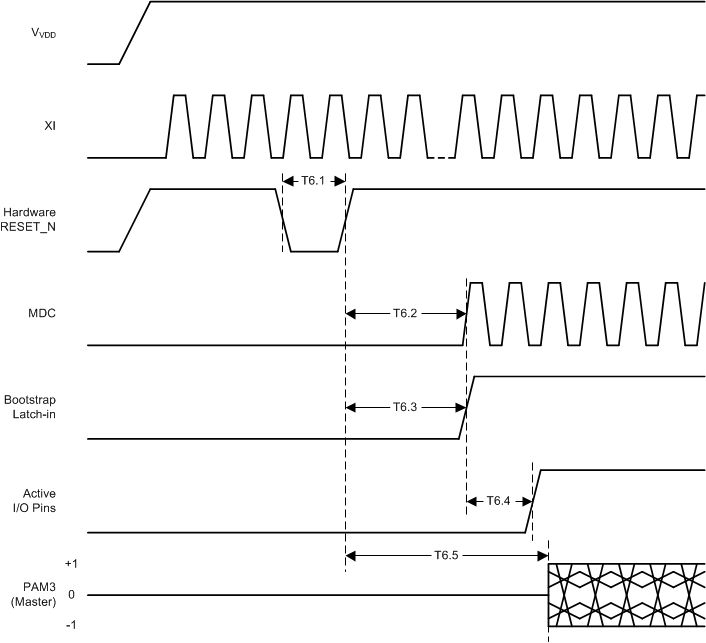

GUID-D1861084-F5C7-4D1C-BB5D-1FE1F5175E17-low.gifFigure 7-2 Reset Timing

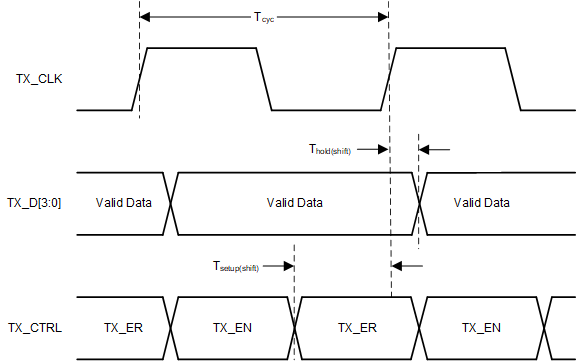

GUID-20200911-CA0I-NCTW-0NMS-MSHMJVFPV049-low.gifFigure 7-3 RGMII Transmit Timing (Internal Delay Enabled)
GUID-B75608F0-BC74-4820-AEE9-2E6FA2FF7BA1-low.gifFigure 7-4 RGMII Transmit Timing (Internal Delay Disabled)

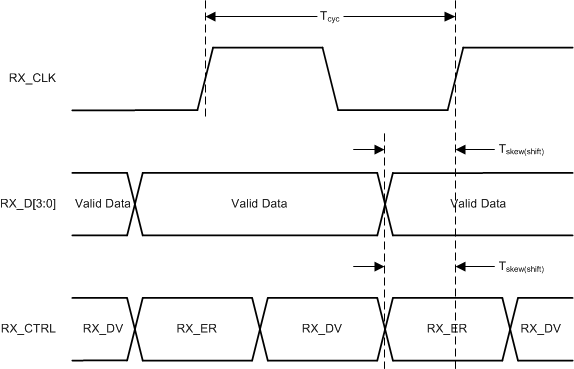

GUID-B42F3912-8921-4E03-BC19-86365C100FA3-low.gifFigure 7-5 RGMII Receive Timing (Internal Delay Enabled)
GUID-175AADD9-4813-4536-A437-AD68991A065A-low.gifFigure 7-6 RGMII Receive Timing (Internal Delay Disabled)
GUID-FF8C9414-B1A5-4703-849E-30E642095550-low.gifFigure 7-7 Serial Management Timing
