SNVSC76C June   2022  – December 2022 DRV3256-Q1

PRODUCTION DATA

  1. 1Features
  2. 2Applications
  3. 3Description
  4. 4Revision History
    1.     Device Comparison Table
  5. 5Device and Documentation Support
    1. 5.1 Device Support
      1. 5.1.1 Device Nomenclature
    2. 5.2 Documentation Support
      1. 5.2.1 Receiving Notification of Documentation Updates
    3. 5.3 Support Resources
    4. 5.4 Trademarks
    5. 5.5 Electrostatic Discharge Caution
    6. 5.6 Glossary
  6. 6Mechanical, Packaging, and Orderable Information
    1. 6.1 Package Option Addendum
    2. 6.2 Tape and Reel Information

Package Options

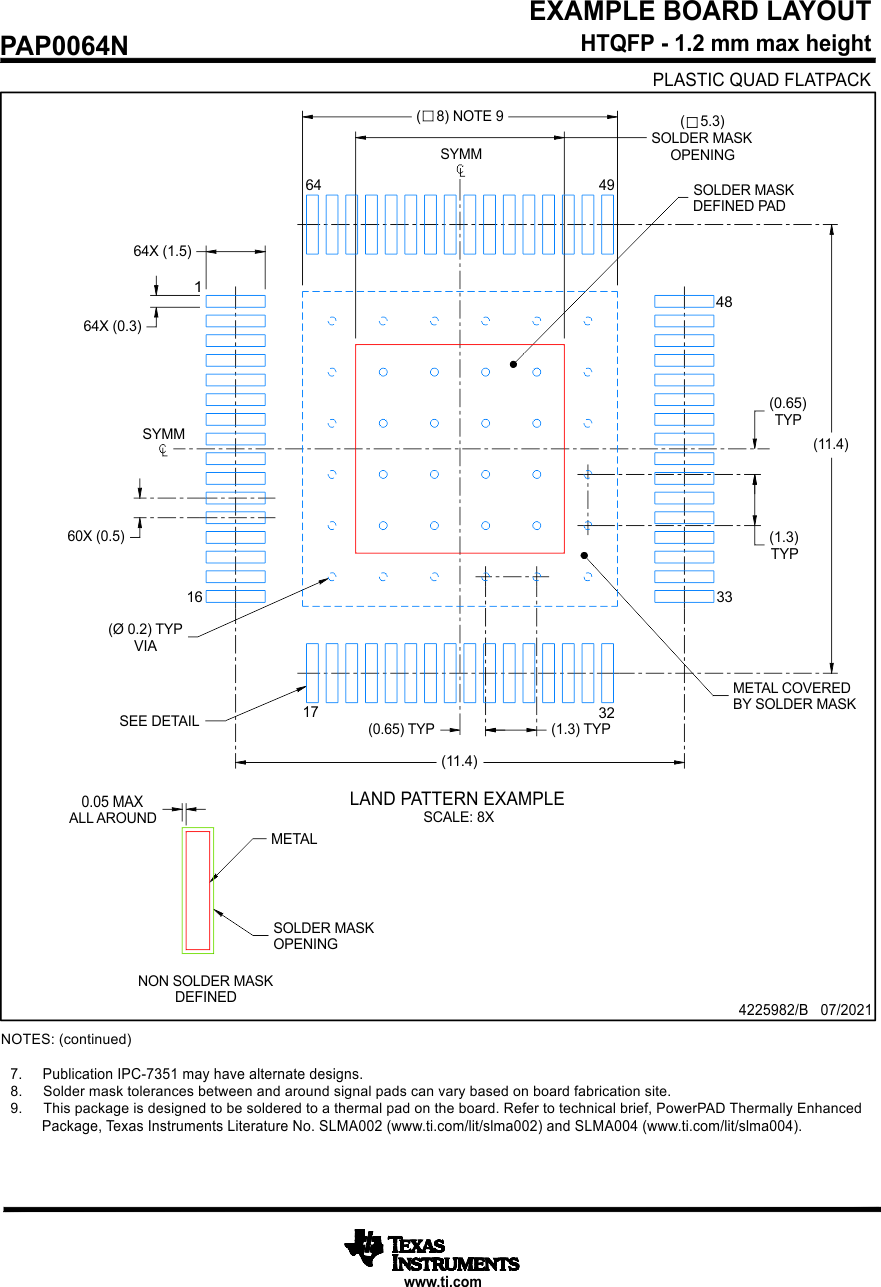

Mechanical Data (Package|Pins)

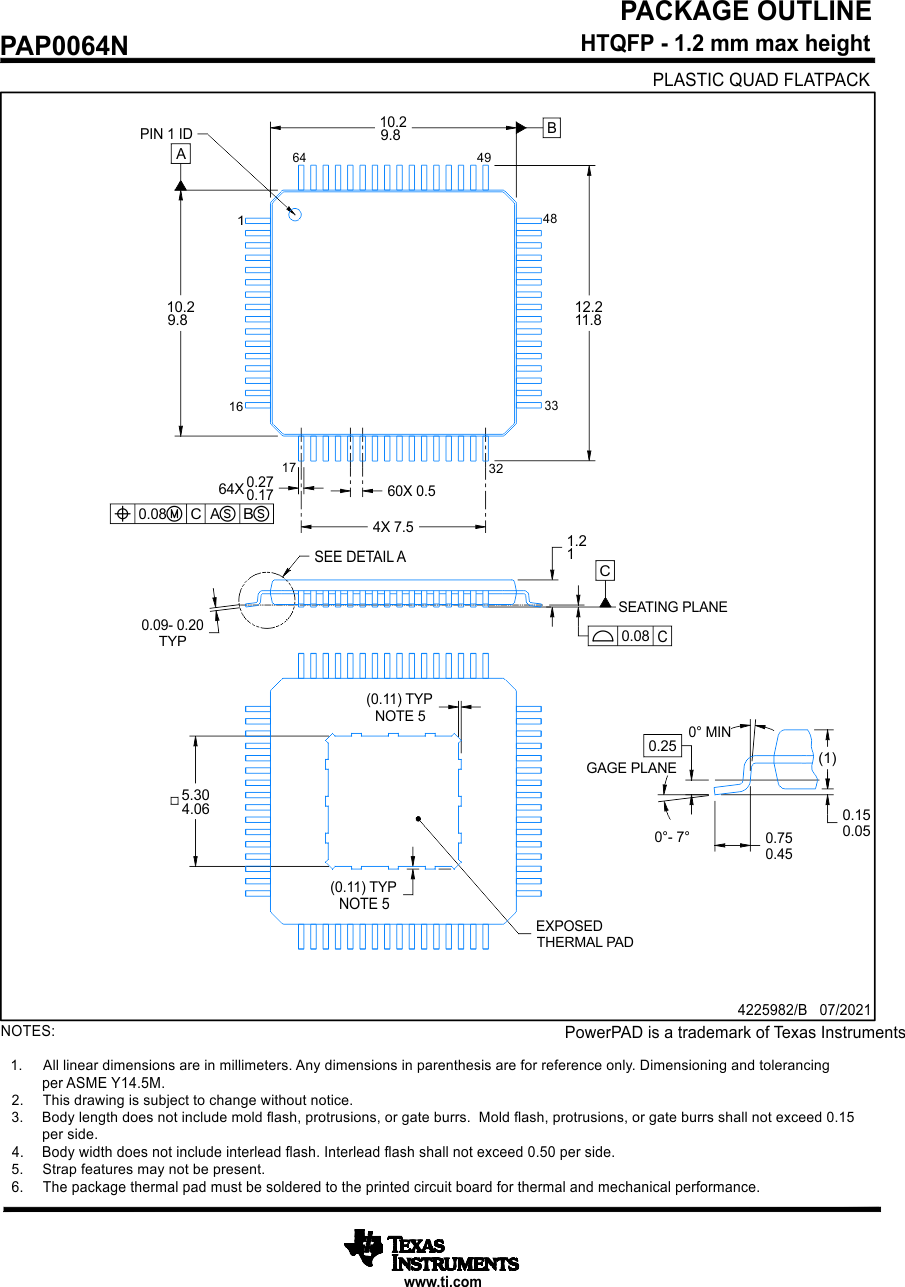

Thermal pad, mechanical data (Package|Pins)
Orderable Information

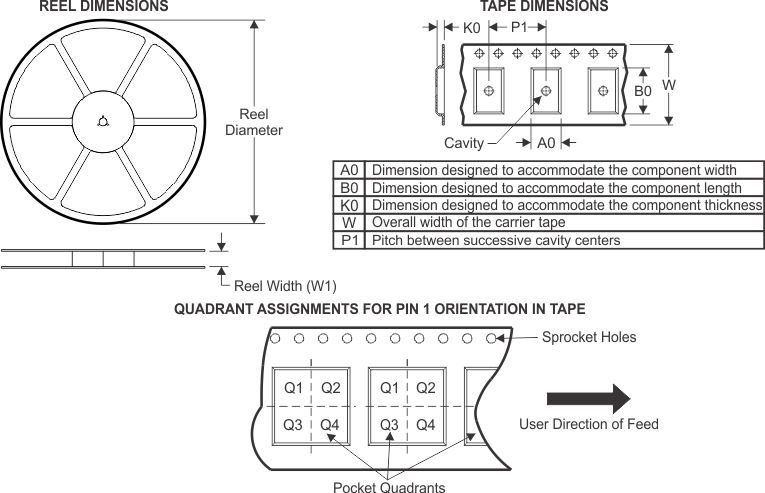

6.2 Tape and Reel Information

Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
DRV3256AEPAPRQ1 HTQFP PAP 64 1000 330.0 24.4 13.0 13.0 1.5 16.0 24.0 Q2
DRV3256EPAPRQ1 HTQFP PAP 64 1000 330.0 24.4 13.0 13.0 1.5 16.0 24.0 Q2
DRV3256BEPAPRQ1 HTQFP PAP 64 1000 330.0 24.4 13.0 13.0 1.5 16.0 24.0 Q2
DRV3256PEPAPRQ1 HTQFP PAP 64 1000 330.0 24.4 13.0 13.0 1.5 16.0 24.0 Q2

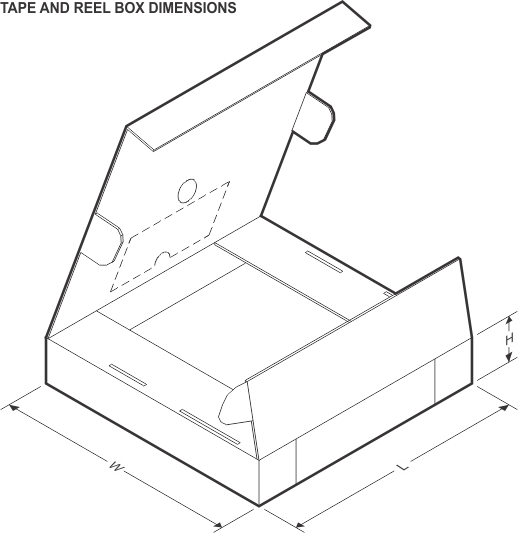

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
DRV3256AEPAPRQ1 HTQFP PAP 64 1000 10.0 10.0 1.0
DRV3256EPAPRQ1 HTQFP PAP 64 1000 10.0 10.0 1.0
DRV3256BEPAPRQ1 HTQFP PAP 64 1000 10.0 10.0 1.0
DRV3256PEPAPRQ1 HTQFP PAP 64 1000 10.0 10.0 1.0
