8.2.1.3 Application Curve

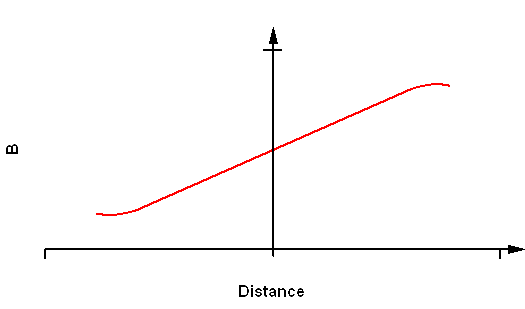

Figure 8-3 shows the magnetic field present at the sensor as the magnet passes by as described in Figure 8-2. The change in distance from the trough to the peak is approximately the length (thickness) of the magnet. B changes based on the strength of the magnet and how close the magnet is to the sensor.

GUID-520E149C-9AC2-4DC0-B1E4-A8447BB027F5-low.gifFigure 8-3 Magnetic Field vs Distance
