6.13.1 Bridge Tied Load (BTL) Configuration

Free-air room temperature 25°C (unless otherwise noted) Measurements were made using DRV5825PEVM board and Audio Precision System 2722 with Analog Analyzer filter set to 20-kHz brickwall filter. All measurements taken with audio frequency set to 1 kHz and device PWM frequency set to 768 kHz with 175kHz Loop Bandwidth and BD Modulation, 2 channel run, PPC3 setting with 5.5A current limiter, unless otherwise noted.

LC Filter = 10µH + 0.68µF VOUT = 6 VP Load = 1 µF
Figure 7-7 THD+N vs Frequency
LC Filter = 10µH + 0.68µF Input Frequency = 1kHz,5kHz,10kHz Load = 1 µF
Figure 7-9 Supply Current vs Output Voltage (Per Channel)
LC Filter = 10µH + 0.68µF Input Frequency = 1kHz,5kHz,10kHz Load = 1 µF

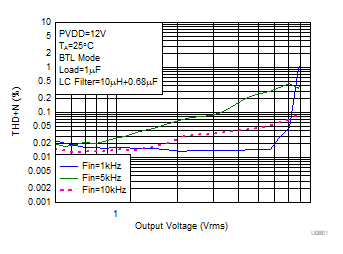

Figure 7-8 THD+N vs Output Voltage (Per Channel)
