8.3.7 Digital Audio Processing

DRV5825P DSP can provide advanced audio processing functions, such as SRC (sample rate convertor), Input Mixer, 15 EQ bands, volume control, Smart Piezo Drive Algorithm, 2 Post EQs, Full band AGL, Clipper and Output crossbar, Level meter.

GUID-CD0B92A0-5F94-49C0-AFBC-D77618EB3A69-low.gifFigure 8-7 DRV5825P Audio Signal Processing

Piezo speaker behaves like a capcictor with low impedance at high frequency which means high frequency current is easier to trigger amplifier over current protection. Capacitive load also causes high Q to LC filter. Piezo drive algorithm do adaptive current/voltage limitation based on output filter's frequency response and piezo impedance. The current/voltage limiter only been triggered with large input level which means this algorithm enhance the dynamic range keep the original sound quality.

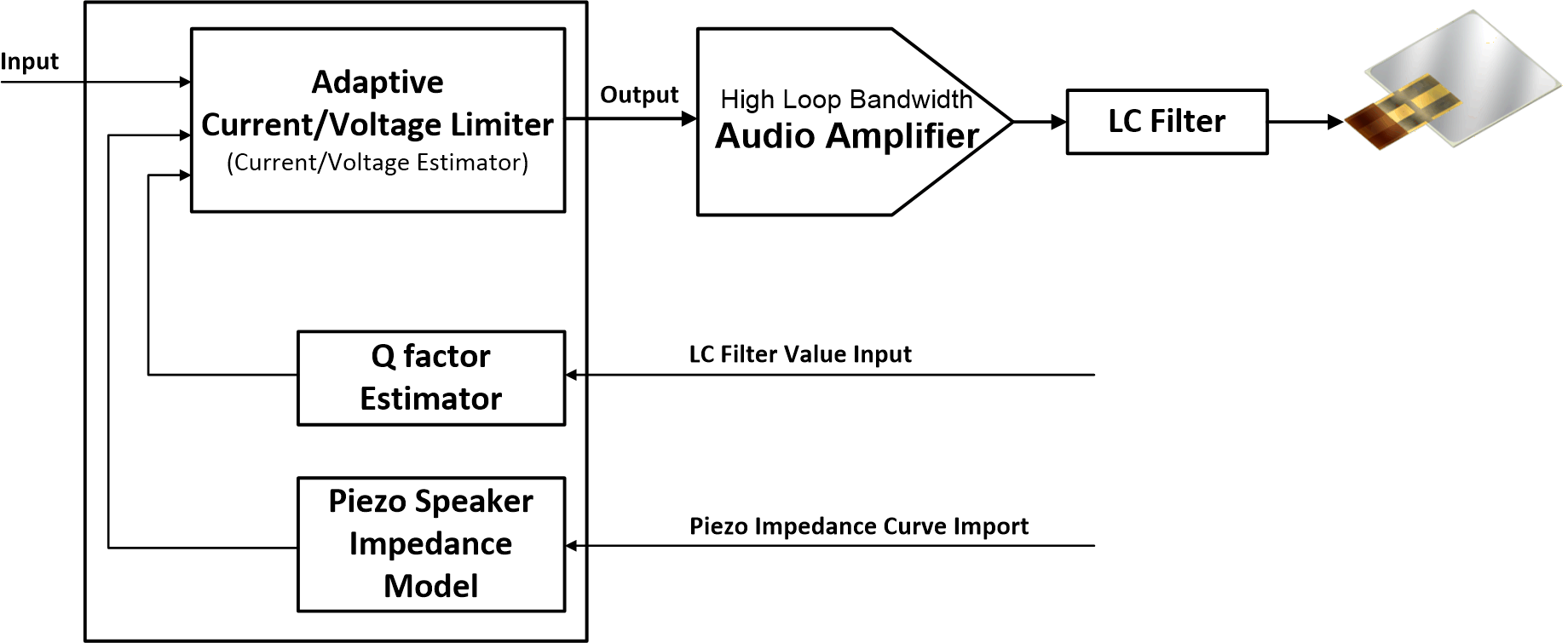

GUID-97E48720-C092-4807-8940-A36744B7D009-low.gifFigure 8-8 Adaptive I/V Limiter Algorithm
